Communication systems for data logger

Communication Systems: GSM/GPRS/Satellite/Interface

You can communicate with your data loggers from your PC / laptop in 3 ways:

1) GSM- / GPRS-system (email or sms)
2) Satellite, if no GSM-network is available
3) Direct interface at your measuring station

Your measuring data can be accessed at time periods of your choice, e.g. daily, several times a week, or monthly. Ammonit has developed various software programs that simplify communication with your data, such as automatic data mailing as well as accessibility and archiving procedures. These programs are available on our website for your free download.

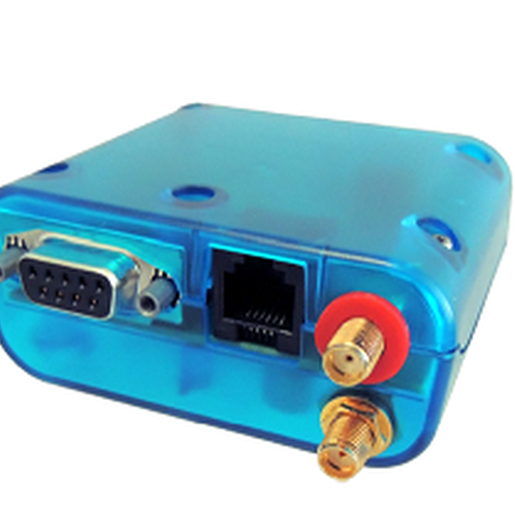

GSM/GPRS-System

Manufacturer: SierraWireless

Order-No: M76100 (GSM/GPRS modem with omni-directional antenna)
Order-No: M76140 (GSM/GPRS modem with directional antenna)
Order-No: M71100 (GSM/GPRS modem)

Data transfer via mobile network: Email, Internet or SMS

Quadband Modem (850 / 900 / 1800 / 1900)
Requirements: GSM/GPRS-network
Automated mailing of e.g. the daily measuring data to your mail box
USB interface

Downloads

Datasheet

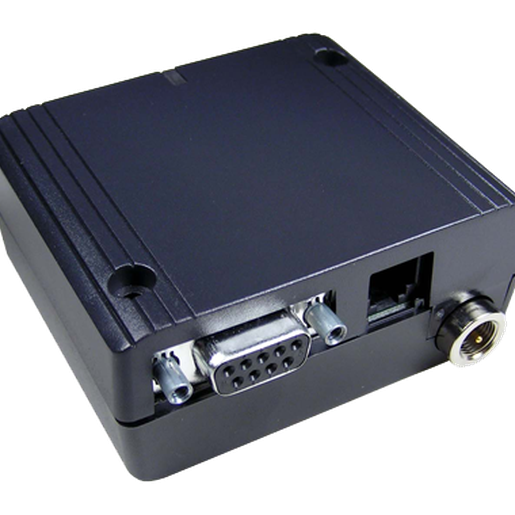

GSM/GPRS-System

Manufacturer: Siemens

Order-No.: P8150.63
(Modem & Accessories)
Order-No.: P 8150M.63
(Installation included)

Data transfer via Mobile network: email, internet or sms
Automated mailing of e.g. the daily measuring data to your mail box
Quadband Modem (850 / 900 / 1800 / 1900)
Requirements: GSM/GPRS-network

Downloads

Datasheet

Data transfer via Satellite

Manufacturer: Wireless Innovation Ltd.

Order-No: P8129.2
Satellite Modem Iridium 9522b
MiChroSat OEM

Global application via Iridium Satellite Network
Unlimited data transfer between PC and measuring station
Applicable when GSM-/ GPRS-network is not available or when sensors are to be heated
Higher power consumption,
larger solarpanel (50 W) is required
Serial interface RS-232
SMA-antenna outputs
Integriated SIM-card reader

Downloads

Datasheet

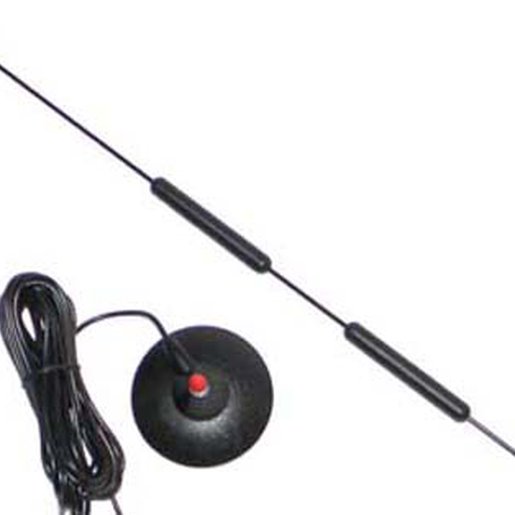

Magnet foot antenna

Manufacturer: MC Technologies GmbH

Oder-No: P8110
Magnet Foot Antenna MC0114037

Reception in high density areas and mountain regions
Installation via magnet onto steel cabinet
900 / 1800 MHz, 1.8 GHz / 1.9 GHz
3.5 m Cable FME-Bu
D-Net (900 MHz): 5 DB
E-Net (1800 MHz): 3 DB
Impendance: 50 Ohm
Height: 359 mm
Weight: 350 g

Downloads

Datasheet

Directional antenna mc0114018

Manufacturer: MC Technologies GmbH

Order-No: P8111
Directional Antenna MC0114018

Resonator antenne 7 DB
Power supply only in open unobstructed regions
900 / 1800 MHz
Directional factor: 6 dBi (typ.)
Polarisation: Linear
Opening degree: E-level 65°, H-level 80°
Impendance: 50 Ohm
Height: 153 mm
Weight: ca. 500 g

Downloads

Datasheet
