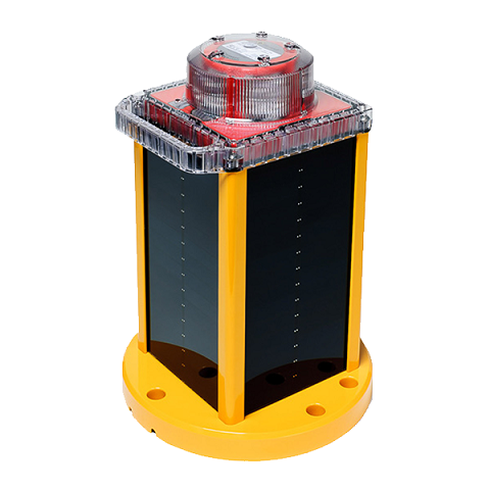

Obstacle Light Carmanah OL800

Obstacle Light Carmanah OL800

Order number

M91210

Availability

On request

Documents

Download PDF
  • Sold with complete measurements systems only
  • Easy to install low-intensity solar LED obstacle light
  • Meets ICAO requirements for Low-Intensity Obstacle Lights Type A and Type B, according to ICAO Annex 14, Volume 1, 5th Edition, July 2009 and 6th Edition, July 2013 (Red).
  • Compliant with Obstruction Light Type L-810 as per FAA Advisory Circular AC 150/5345-43G 09/26/12 (Red).
Characteristic Description / Value
Optical
  • High powered LEDs meet IES LM-80 lumen maintenance consistent photometrics for life of product
  • FAA: Meets Obstruction Light Type L-810 as per FAA Advisory Circular AC 150/5345-43G 09/26/12 (Red.)
  • Complies with ICAO Low-Intensity Obstacle Light Type A & B - Annex 14, 5th Edition, July 2009 (Red.) and 6th Edition, July 2013 (Red.)
  • Meets requirements for CASA 10 cd (Part 139, Vol. 2)
  • ICAO, SAE25050 (FAA) and FAA EB 67 compliant chromaticity: Red, Green, White and Yellow
  • Steady-on and 250+ flash patterns
Energy collection Best in-class high efficiency solar cells with blocking diodes
Maximum power point tracking with temperature compensation (MPPT-TC)
Energy storage EnerSys CYCLON pure-lead VRLA AGM battery -65 ... +80°C manufacturers operating range
On-board battery status; optional port for battery charging
Designed for 5 year battery life, replaceable and recyclable
Energy Management System (EMS) Intelligent, microprocessor
On-board diagnostics and data logger
Automatic Light Control (ALC) Adjusts output intensity in response to unusually low amounts of sunlight to ensure continued operation

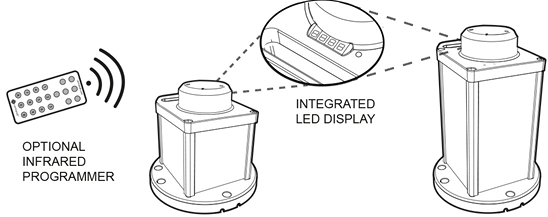

Programming Programmable with optional infrared programmer or va integrated 4-character LED display
GPS synchronisation Optional GPS enables two or more lights to flash in unison
Construction Premium grade UV-resistant, polycarbonate lens/head
Polycarbonat/polysiloxane co-polymer base
Environmentally friendly, durable powder coated aluminium chassis
Thermoplastic gaskets
Waterproof, vented battery compartment
Operating temperature -30 ... +50°C (optimal); -40 ... +80°C (maximum)
Mounting 3 or 4, 7.87” (200 mm) bolt circle mounting pattern
Wind load 70 m/s
Ice load 22 kg/m²
Weight 10.2 kg
Manufacturer Carmanah Technologies



Programming & Configuration Options
