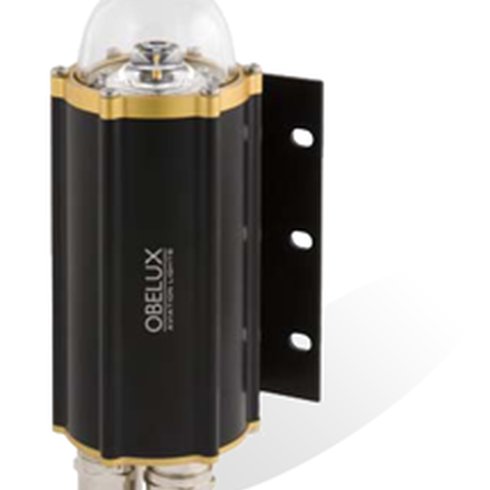

Obstacle Light Obelux 10 cd

Obstacle Light Obelux 10 cd

Order number



On request


Download PDF
  • Based on LED-technology
  • Extremly reliable - long lifetime
  • Very low power consumption
  • Wide 10 to 60 VDC input voltage
  • Stablised light output
  • All mechanical parts marine grade aluminium, acid proof steel or glass, suitable for off-shore use
  • No RF-radiations
  • Lightweight and small - low wind load factor
Characteristic Description / Value
Operating voltage 10 ... 60 VDC
Power consumption 1.5 W
Control Optional with photocell and flasher
Alarms Optional with CSW units
Light colour Red
Vertical beam angle 10°
Intensity > 10 cd
Horizontal radiation pattern 360°
Vertical radiation pattern 15°
Flash character Steady burning
Operating temperature -50 ... +50 °C
Protection IP 65
Material Anodized marine grade aluminium body and end parts
AISI 316 acid proof steel screws
Wind load 200 km/h less than 40 N ((with MS-EV60 mounting kit)
Specifications ICAO International Standards and Recommended Practices: Aerodromes - Annex 14 Volume 1, 4th Edition, July 2004, Chapter 5: Low-intensity, Type A Fixed Obstacle Light
Dimensions (H) 210 mm x (D) 104 mm
Weight 1.1 kg
Manufacturer Obelux Oy

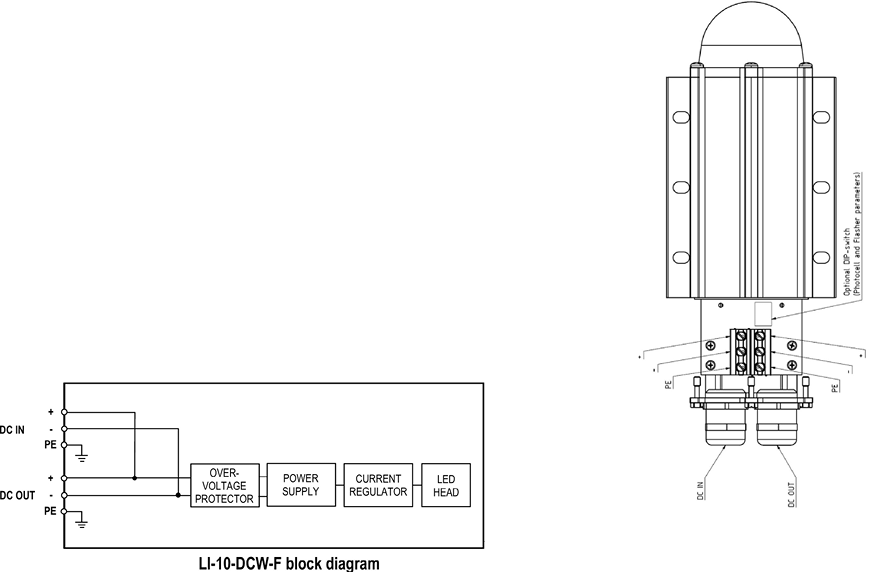

Electrical installation instructions
