Chapter 1. Introduction
AmmonitOR (Ammonit Online Report) is a system developed by Ammonit to collect, manage, monitor and archive measurement data from Ammonit data loggers or other 3rd party devices. With AmmonitOR you can easily display your measurement data in plots and schedules. You can create customised status reports and export measurement data.
AmmonitOR follows the MEASNET Site Assessment Guideline, particularly in the field of assessing data integrity and data quality as well as filtering. Refer to 8.1 Assessment of Data Integrity and 8.2.1 Data Quality Assessment and Filtering of the MEASNET Site Assessment Guideline.
The system is available 24/7 and can also be accessed using mobile devices, e.g., tablet PCs or smartphones.
Users have to be registered to access the monitoring system. AmmonitOR (hosted by Ammonit) is partly free of charge. AmmonitOR can be installed on the customer's Linux™ server (with costs). Contact Ammonit for further details. Benefit from the following AmmonitOR features:
Global data access around-the-clock (24/7)
Data quality check using customised filters for sensors, such as ice effects, temperature, humidity, air pressure performance or the measuring system
Automatic alert emails (based on customised filter conditions), which inform about technical problems, such as faulty measurement data or power supply
Display of measurement data in diagrams, e.g., histograms, correlation profiles, long term comparison profiles
Connection log displays online connections of Meteo devices, e.g., to monitor connection problems
Data export in selectable file format, e.g., Microsoft XLS, CSV, HTML
Generation of PDF reports incl. project details, measurement data and plots for archiving and monitoring purposes
Long-term data storage of up to three years on a dedicated Ammonit server or on a server of your choice
Access control: specification of access rights for users, e.g., Admin, User, Guest

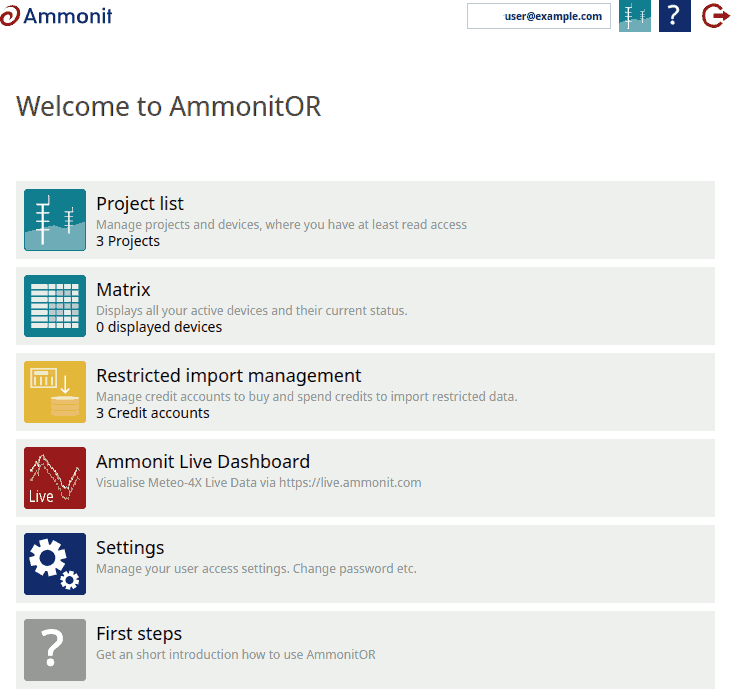

Figure 1.1. AmmonitOR Dashboard
