The piezoelectric pressure sensor’s signal is electronically amplified to provide an output signal of 0...5 VDC.

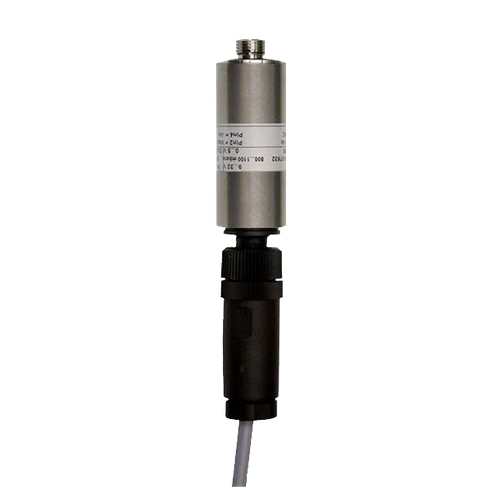

The sensor is mounted in a stainless steel housing, protection class IP64 when the connector is plugged in.
When mounted outside the central steel cabinet we recommend protective housing with pressure compensation.
In measurement operation the sensor needs an external supply of at least 9 VDC.
|Operating pressure||800 ... 1100 hPa (mbar)
(Altitude: ≤ 1400 m)
|Temperature operation range||-40 ... 85 °C|
|Humidity range||0 ... 98 %RH|
|Total accuracy (-10 ... 60 °C)||±3 hPa|
|Long term stability||±0,3 hPa/year|
|Output voltage||0 ... 5 VDC|
|Supply voltage||9 ... 32 V|
|Current consumption||5 mA|
|Dimensions||Length 72 mm, diameter 22 mm|

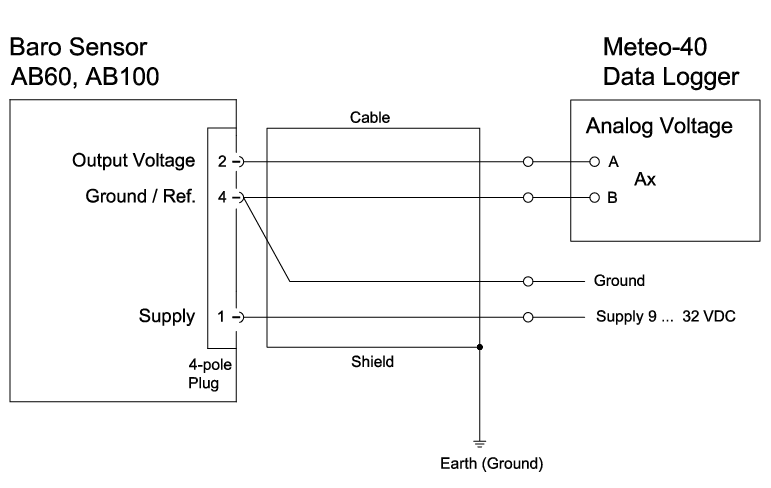

|Connection||4-pole plug (M12)|
|Protection class||IP 64 - when connector is plugged in|
|Vibration (5 ... 500 Hz)||2 gRMS|
|Mechanical shock||50 g|
* FSO (Full Scale Output) describes the difference of the upper and the lower limit of the pressure range.
