Hygro-Thermo-Baro transmitters COMPACT are designed to measure relative humidity, air temperature and barometric air pressure.
This sensor is intended for use at meteorological measuring stations for connection to datalogger systems. Thanks to its universal interface the sensor can also be used as a single solution in every application suitable.
The use of high-quality sensors for the parameters to be measured allows the sensor to achieve the following:
| Characteristic | Value |
|---|---|
| Temperature | |
| Measuring range | -40 … +80 °C |
| Accuracy | ±0.1 °C @ -40 ... +80 °C @ moved air >2 m/s |
| Rel. Humidity | |
| Measuring range | 0 … 100 % rel. Humidity |
| Accuracy | Typ. ±1,5 % r. H. @ 25 °C and < 80 % r. H. 2 % r. H. over the complete measuring range |
| Air pressure | |
| Measuring range | 600 … 1100 hPa |
| Accuracy | ±0.25 hPa @ -20 … +80 °C @ 800 … 1100 hPa ±0.50 hPa @ -20 … +80 °C @ 600 … 800 hPa |
| Output Digital | |

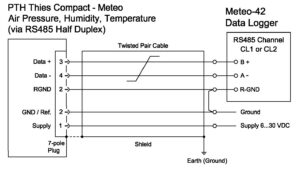

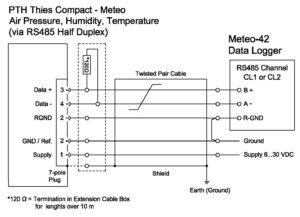

| Interface | RS485 HD |
| Communication protocol | Modbus RTU (on request Thies ASCII) |
| Baud rate | 38400 (on request 2400 ... 57600) |
| Device-ID | 1 (on request others) |
| RS485 data format | 8N1 |

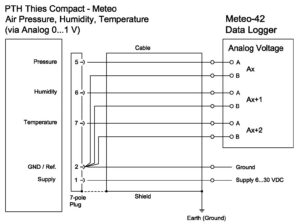

| Output Analog 3 x 0 ... 1 V | |
| Temperature | -40 … +80 °C |
| Offset | -40 °C |
| Slope | 120 °C/V |
| Rel. Humidity | 0 … 100 % |
| Offset | 0 % |
| Slope | 100 %/V |
| Air pressure | 600 … 1100 hPa |
| Offset | 600 hPa |
| Slope | 500 hPa/V |
| Power supply | |
| Operating voltage | 6 ... 30 VDC |
| Current consumption | Typ. 3 mA @ 12 V / max. 8,5 mA @ 12 V |
| General | |
| Ambient conditions | -40 ... +85 °C |
| Housing | Stainless steel |
| Type of protection | IP 67 (applies to the total sensor) |
| Dimension | see dimensional drawing |
| Weight | approx. 0.45 kg |
| Manufacturer | Thies Clima |
| Admissible environmental conditions |
-40 ... +85 °C 0 ... 100 % rel. humidity, including condensation |
| Filter | Sintered filter cap |
| Accessories | S50050 Weather and Radiation Shield |
