Solar Resource Assessment
In order to design profitable solar power plants, it is essential to measure the local irradiation. Depending on the type of your planned solar power plant
- PV (Photovoltaic) or
- CSP (Concentrated Solar Power)
different measurements are necessary:
| Measurement instrument | Application | ||
| GHI | Global Horizontal Irradiation | Pyranometer, reference cell | PV and CSP |
| GTI | Global Tilted Irradiation | Pyranometer (tilted), reference cell (tilted) | PV |
| DHI | Diffuse Horizontal Irradiation | Rotating Shadowband Irradiometer, Pyranometer with shadow ring or ball | PV |
| DNI | Direct Normal Irradiation | Pyrheliometer installed on Sun Tracker, Rotating Shadowband Irradiometer | CSP and large PV power plants |
Questions about solar measurement systems? Our sales team is here for you.

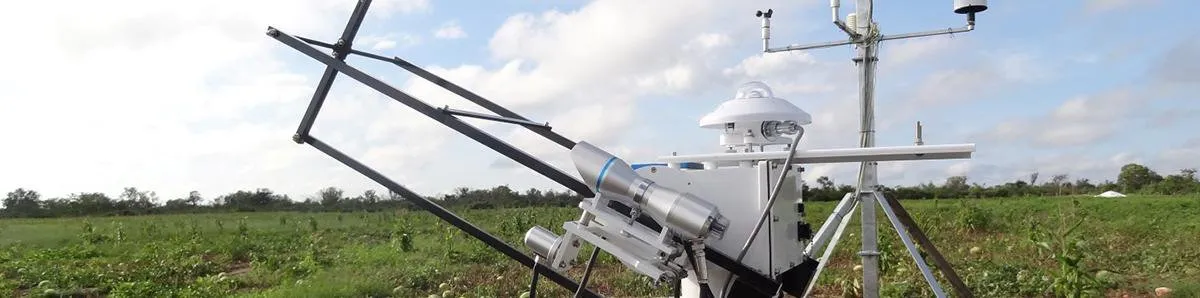

Components of our solar measurement systems
- Data loggers to record and calculate measurement data
- Pyranometer to measure global and diffuse irradiation (GHI + DHI)
- Pyrheliometer to measure direct normal irradiation (DNI)
- Reference cell
- Sun Tracker with installed pyrheliometer for direct normal irradiation measurement (DNI) or with installed pyranometer including shadow ring / ball for diffuse horizontal irradiation measurement
- Anemometer to measure wind speed (optional)
- Wind vane to determine the wind direction (optional)
- Temperature humidity sensor as well as air pressure sensor to measure air density (optional)
- Precipitation sensor (optional)
- Communication system to transfer measurement data
- Power supply system
