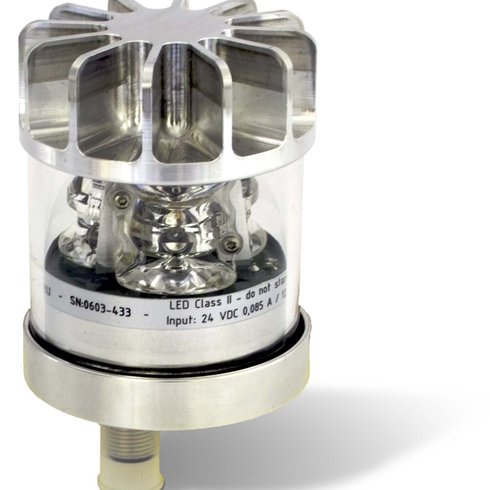

Obstacle Light Lanthan HF102

  • Order number
    M92100
  • Availability

    On request
Low power consumption, maintenance free obstacle light

Description

  • Sold with complete measurements systems only
  • Light Intensity 10 Candela, colour: red
  • Power Consumption < 1.7 W
  • Low power consumption, ideal for autonomous systems
  • Materials: Aluminium EN AW 6082 / PMMA
  • Maintenance free due to fail safe LED-technology
  • > 50 000 hours operating capacity
  • Wide operating voltage (10…50 VDC)

Specifications

Obstacle Light Lanthan HF102
General Information
Order Number M92100
Technical Specifications
Intensity of light >10 cd red, 360° horizontal
according to ICAO Annex 14, Low intensity, Type A
Lifespan >50,000h
Supply voltage 10 … 50V
Nominal power < 1.7W (12V/140mA; 24V/70mA)
Surge protection integrated
Failure detection integrated (failure indication after 50,000h)
Fail-safe level
Light o.k.: 1.5V below supply voltage (open circuit)
Light failure: 0V
Temperature range
-40 … +55°C
Protection class
IP 67, with venting element
Housing
Aluminium, seawater-resistant
PMMA, UV-resistant
Dimensions
ca. 64 x 80 mm (body without plug)
Weight
300g (0.66 lbs)
Manufacturer
Lanthan

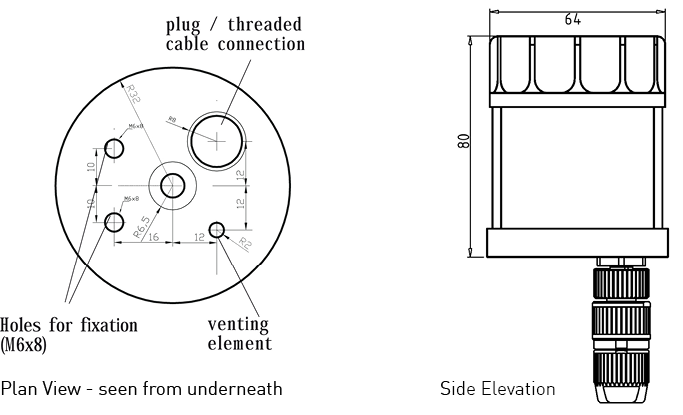

Dimensional Drawing

Schematic
