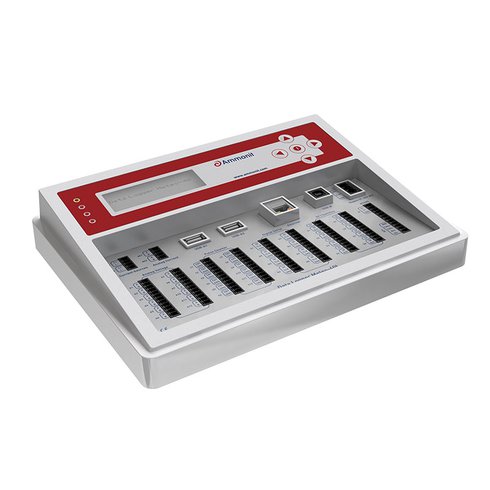

Meteo-40L plus

Meteo-40L plus

Order number

M31020

Availability

Usually in stock

Accessories

Documents

Download PDF
  • Applications:

Wind Resource Assessment

Power Performance Measurements

Wind Park Monitoring / SCADA

Wind Measurement in Cold Climate

Solar Resource Assessment

Soiling Measurement

Solar Park Monitoring / SCADA

Dynamic Line Monitoring

  • Compliant with IEC 61400-12-1:2017
  • User-friendly configuration via protected web interface
  • Various inputs and outputs for different measurement purposes

 New developments:

  1. LTE and 4G modems e. g., PLS8-E and many more.
  2. Web Interface and Email: TLS 1.1, 1.2, and 1.3 are supported.
  3. Admin user can create new users or delete them.
  4. Predefined users can be deleted.
  5. Less latency in SCADA systems due to faster Modbus RTU and TCP
  6. Latest Linux version and newest versions of security libraries like SSL, SSH, SFTP, SCP, https, etc.
  7. Data can be sent with FTPS which makes industry standard encryption more accessible.



Meteo-40L plus  Description  / Device
  Order Number   M31020
Input Channels         Pulse Counters  12 Anemometers, precipitation sensors
Digital Serial  (Status)  8 Wind vanes serial, precipitation monitors, ext. activation
Analog Voltage

 12

± 0.1 V, ± 1 V, ± 10 V
16 bit

Air pressure, temperature, humidity sensors, pot. wind vanes, pyranometers, pyrheliometers
Analog Current

 2

± 1 mA, ± 10 mA,
± 100 mA
16 bit

Sensors with DC output, e.g., temperature humidity sensor (0 ... 20 mA)
RS485 (M)     (1) RS485 Master for up to 8 smart sensors Ultrasonic anemometers and smart sensors
Output Channels RS485 (S) (1) RS485 Slave   SCADA monitoring software
 5V | Switches 8 Sensor supply, relay for modem, heating supply
Current Source     2  Pt1000, Pt100
Connectivity    USB (2) USB-A host
(1) USB-B device
PC, modem, memory stick, WiFi, GPS, web cam
Ethernet  (1) Ethernet     Router, SAT-Modem, LAN and SCADA output
Data transfer Email, FTP, SCP, SFTP, FTPS, Datacopy on USB-Stick, SCADA
Data cloud SCP to AmmonitOR https://or.ammonit.com
Remote control SSH reverse tunnel through AmmonitConnect Server https://<serialnumber>.connect.ammonit.com/
Storage Size  Source Data
(1-sec data)
 2 GB
 CSV Data
(10-min data)
 > 50 MB
  Display & Keys    (20 x 4) LC display with backlight, five keys
  Power Supply 9 ... 36 VDC
  Operat. temperature  -40 ... +65 °C
  Protection (Housing)     IP65
  Housing Dimensions 260 x 194 x 50 mm
  Weight     950 g
  Accessories     External modules, plug connector, mounting kit, steel cabinet
