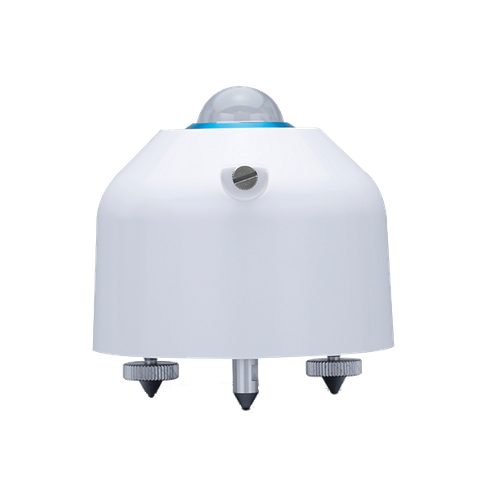

The MS-80 Secondary Standard pyranometer was inspired by the combination of latest technologies and state-of-the-art thermopile sensors, enabling a breakthrough in unprecedented low zero-offset behaviour and fast sensor response. The compact sensor with single dome, based on a isolated thermopile detector and Quartz diffusor is immune to offsets and integrates all optional value added functions such as a ventilator, heater and different industrial interfaces. The heater and ventilator are recommended, particularly over areas impacted by dew, frost, snow, and dust.
MS-80 is designed with analog voltage output. The analogue MS-80 pyranometer can be used as a reference sensor to measure the global broad-band solar radiation with a high accuracy. With excellent temperature response and non-linearity characteristics, it provides optimal performance throughout the year.
|Sensitivity||~ 10 µV/W/m-2|
|Wavelength range||285 ... 3000 nm|
|Max. operational irradiance||4000 W/m²|
|Response time (95%)||< 0.5 s|
|Response time (99%)||< 1 s|
(a) thermal radiation (200 W/m²)
(b) temperature change (5k/hr)
± 1 W/m²
|Non-linearity||± 0.2 %|
|Long-term stability||± 0.5 % / 5 years|
|Direction response||± 10 W/m²|
|Temperature response (-20 ... +50°C)||< 1 %|
|Tilt response @ 1000 W/m²||± 0.2 %|
|Impedance||approx. 45 kΩ|
|Operating temperature||-40 ... +80 °C|
|Cable length||10 m|
|Accessory||Thies Universal Amplifier (Order-No. S05000)|
|MV-01 ventilator / heater (Order-No. S64060)|
Delivery includes IEC 17025 calibration certificate.
