Precipitation Monitor Thies

Precipitation Monitor Thies

Order number

S72100H/S72110H

Availability

On request

Accessories

Documents

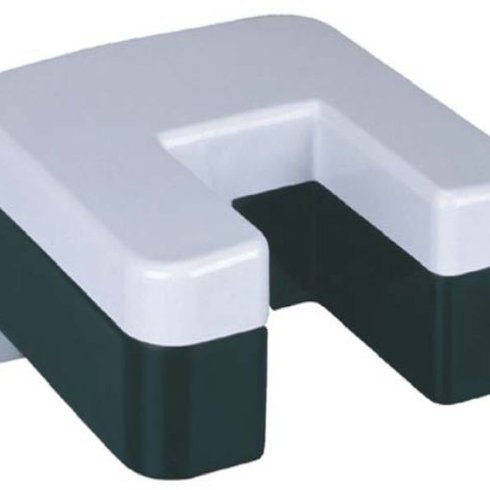

The Thies Precipitation Monitor transmits signals to determine the beginning and end of precipitation as well as the duration of the period of precipitation.

Charateristic     Desciption / Value
Measuring value  Status of precipitation
Drop size   ≥ 0.2 mm
Switch-on condition  1 ... 15 incidences within 50 seconds
Switch-on /-off delay   none / 25 ... 375 seconds
Operating range
Ambient temperature     -30 ... 60°C
Electrical data
Electrical supply   12 - 28 VDC/ 50 mA
1,2 A @ 24 VDC
Relais     S72100H: HZ Modus A
S72110H: HZ Modus C
General
Mounting     Mounting on mast tube Ø 34 ... 50 mm
Dimension       38 x 125 x 136 mm (height x width x length)
Weight     0.4 kg
Protection     IP 65
Manufacturer     Thies
