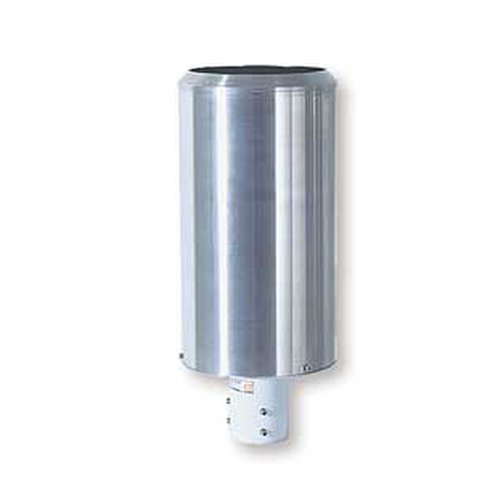

Precipitation SensorThies

Precipitation SensorThies

Order number

S71100 / S71100H

Availability

Usually in stock

Accessories

Documents

Download PDF

The Thies Precipitation Monitor transmits signals to determine the beginning and end of precipitation as well as the duration of the period of precipitation.

Charateristic     Desciption / Value
Collector surface   200 cm²
Resolution     0.1 mm per tipping-bucket pulse
Measuring range  0 ...11 mm/min

Accuracy output
1 within the range of 0 ... 11 mm/min

 ±3 %
(tested under laboratory conditions with distilled water)
Measuring principle tipping-bucket
Ambient temperature   0 ... +60 °C (without heating),
-25 ... +60 °C (with heating)

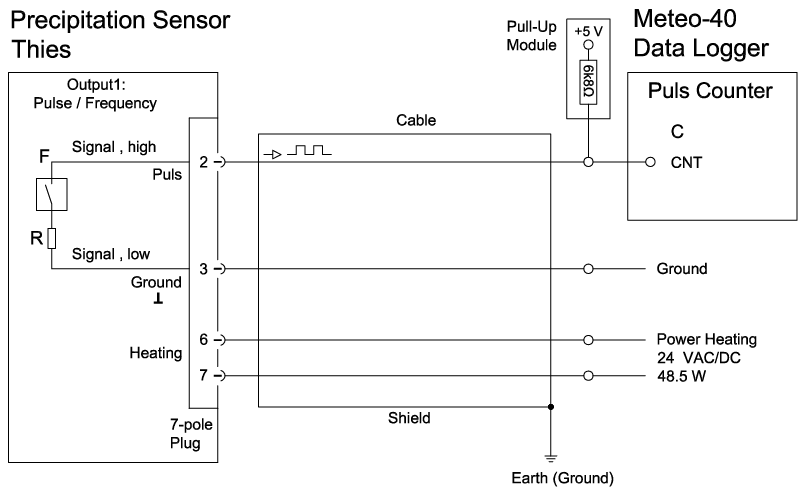

Output signal 1 (Reed contact with linearization)
  Pulse length   125 ms
  Tipping-bucket frequency 0 ... 2 Hz
  Operating voltage 5 VDC
Output signal 2
  Pulse length 50 ms
  Pulse frequency     0 ... 2 Hz
  Contact load max. 0.5 W
  Contact voltage (Vcc) max. 42 V
Heating     24 VAC/DC; 48.5 W
Montage     onto mast tube Ø 50 mm
Weight     3.3 kg
Manufacturer     Thies
Accessories     Module M83200 or M83570
