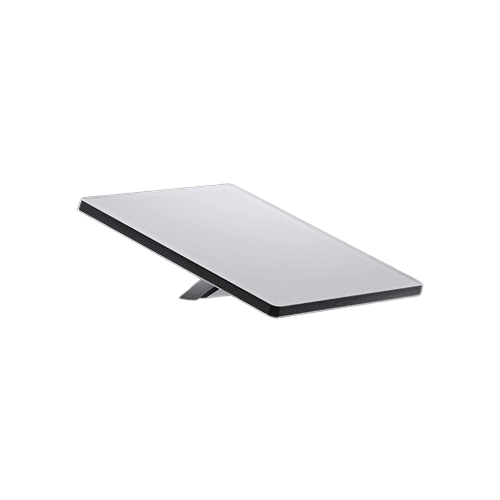

The Modem Starlink Mini is a compact, portable kit, designed to provide high-speed, low-latency internet on the go or at home.
With its 12 V or 24 V DC power compatibility and a lower power consumption of 25–40 W, it’s an ideal choice for remote applications.
However, since the energy consumption is still significant, it’s essential to manage its power effectively. We recommend using a relay switch and are ready to provide you with a customized solution.
| Modem Starlink Mini | |
|---|---|
| General Information | |
| Order Number | M71710 |
| Mobile Network Features | |
| Wi-Fi Technology | 802.11a/b/g/n/ac |
| Generation | WiFi 5 |
| Module | Quectel EG25-G module integrated |
| Radio | Dual Band 3 x 3 MU-MIMO |
| Power | |
| Power consumption | Average: 25-40 W |
| Input Rating | 12-48 V 60 W |
| USB PD Requirement | 100W, 20V/5A Minimum (with Starlink USB-C to Barrel Jack Cable Accessory) |
| Ports and Interfaces | |
| Ethernet Ports | One (1) Latching Ethernet LAN port with Starlink Plug |
| Radio | Dual Band 3 x 3 MU-MIMO |
| Coverage | Up to 112 m² |
| Antenna | |
| Antenna | Electronic Phased Array |
| Field of View | 110° |
| Orientation | Software Assisted Manual Orienting |
| General | |
| Operational temperature | -30°C to 50°C |

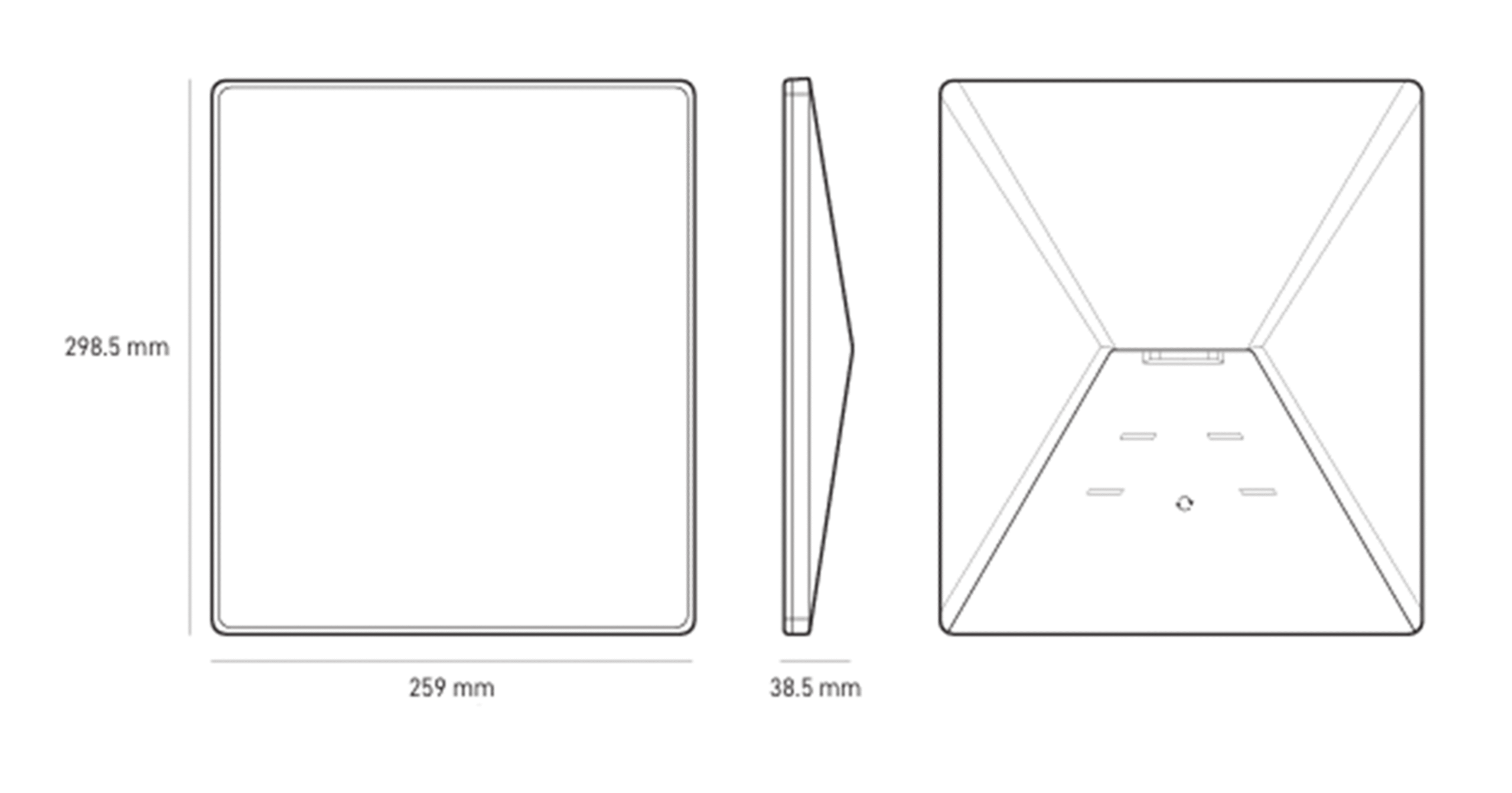

| Package Dimensions (W x H x D) | 430 x 334 x 79 mm |
| Package Weight | 2.89 kg |
| Weight | 1.10 kg 1.16 kg with Kickstand 1.53 kg with Kickstand & 15 m Cable |
| Power Indicator | LED | rear face plate, lower left corner |
| Environmental Rating | IP67 Type 4 with DC Power Cable and Starlink Plug/Cable installed |
| Devices | Connect up to 128 devices |

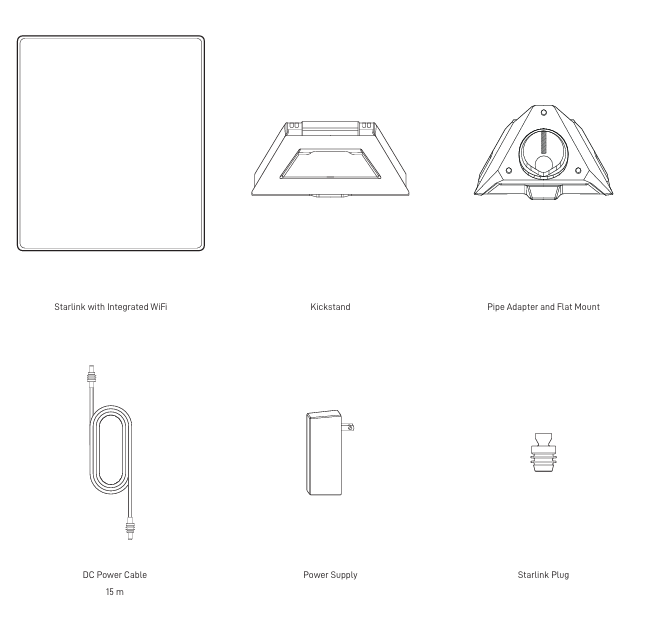

What’s included?
You can view the full specifications here
