The modem provides worldwide coverage and reliability even while roaming across different wireless network technologies. Two antenna pads enable diversity support allowing PHS8 to provide improved dataspeeds even under fluctuating 3G network conditions.

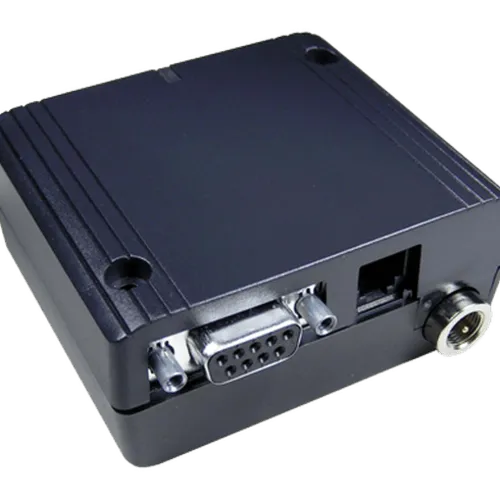

| Modem 4G LTE / 3G UMTS PLS8-E GPS | |
|---|---|
| General Information | |
| Order Number | M76510 / M76510M |
| Air Interface | |
| Supported Technologies | LTE/UMTS/HSPA/GSM/EDGE |
| LTE bands | 800, 900, 1800, 2100, 2600 MHz |
| LTE | Cat. 3 |
| LTE data rate | DL: max. 100 Mbps UL: max. 50 Mbps |
| UMTS bands | 900, 1800, 2100 MHz |
| UMTS | DL Cat.24 / UL Cat. 6 |
| UMTS data rate | DL: max. 42 Mbps UL: max. 5.76 Mbps |
| GSM/GPRS/EDGE bands | 900, 1800 MHz |
| EDGE | class 12 |
| EDGE data rate | max. 237 kbps (DL & UL) |
| Power | |
| Supply Voltage | 8 ... 60 V |
| Electrical connection | 6-pole Western jack (use accessory cable) |
| Interfaces | |
| USB | USB 2.0 high speed, type B |
| Control | AT commands |
| Card reader | Mini SIM |
| Antennas | |
| LTE/UMTS antenna interface | SMA |
| Impedance | 50 Ω |
| General | |
| Operational temperature | -30 °C ... +64°C |
| Dimensions | 65 x 74 x 33 mm |
| Weight | 96 g |
| Accessories | |
| Omnidirectional antenna LTE | Article No. M72240 |
| USB cable | Article No. M01210 |
| Supply cable | Article No. M71041 |
| Adapter plug FME/SMA | Article No. M71020 |
