Description

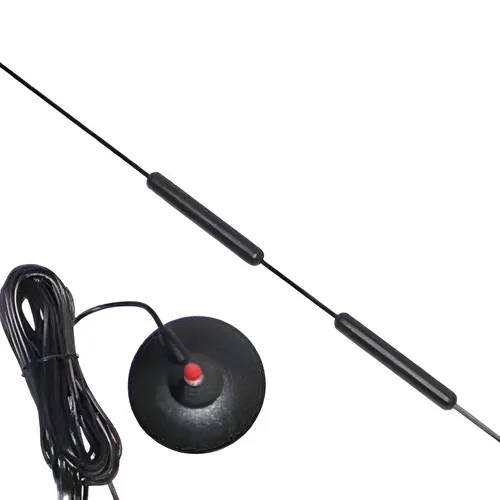

Omnidirectional antenna for GSM, UMTS, and LTE. Features a magnetic base, 3 m cable, and vertical polarization for reliable signal boosts across 700–900, 1800–2100, and 2400–2700 MHz.
Usually on stock
Ammonit Measurement GmbH
Measuring wind and solar power
Wrangelstrasse 100・10997 Berlin・Germany
+49 30 moc.tinomma@ofni・08813006
Omnidirectional antenna for GSM, UMTS, and LTE. Features a magnetic base, 3 m cable, and vertical polarization for reliable signal boosts across 700–900, 1800–2100, and 2400–2700 MHz.
| Omnidirectional antenna GSM / UMTS / LTE + adapter | |
|---|---|
| General Information | |
| Order Number | M72260 |
| Antenna Specifications | |
| Frequency | 700-900 MHz 1800-2100 MHz 2400-2700 MHz |
| Impedance | 50 Ω |
| B.S.W.R | 2.0:1 |
| Gain | 5 dBi |
| Polarisation | vertical |
| Max. Power | |
| 10 W | |
| Temperature range | |
| -40°C to +80°C | |
| Cable/connector | |
| 3 m RG58 / FME/SMA connector | |
| Base | |
| magnetic, 70 mm Ø | |
| Height | |
| 453 mm | |
| Weight | |
| 249 g | |
