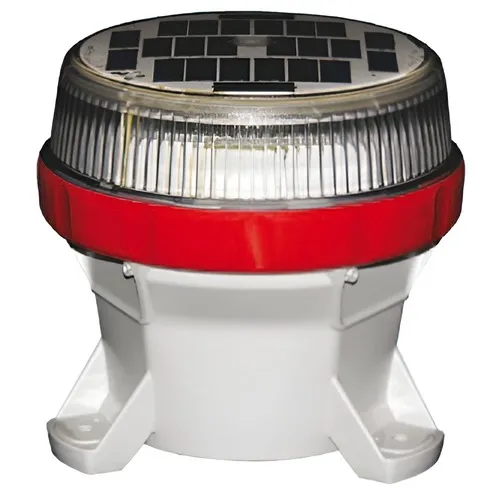

Obstacle Light Carmanah A650

  • Order number
    M91100
  • Availability

    On request
High value solar-powered light

Description

  • Sold with complete measurements systems only
  • Up to 10 cd of intensity (steady-on, green, equatorial)
  • Replaceable and recyclable battery pack
  • Intuitive on-board user interface
  • Dusk-to-dawn operation
  • Optional external switch
  • Intelligent deployment location settings protect against improper configuration

Specifications

Obstacle Light Carmanah A650
General Information
Order Number M91100
Technical Specifications
Solar panel High-efficiency cells with bypass and blocking diode function. Maximum power point tracking (MPPT) for optimal energy collection.
Battery Tool-less replaceable and recyclable best-in-class battery pack with extreme temperature range. Battery status feedback of Good, Charge or Bad (Replace).
Light sources High power LED. Colour-specific temperature corrected LED drivers provide consistent intensity under all operating conditions.
Intensity 10 cd intensity, steady-on (see photometric plot on reverse).
18 cd peak intensity, flashing, 12.5% duty cycle (Red LEDs).
Flash patterns 256+
Construction Premium grade UV resistant, polycarbonate/polysiloxane co-polymer body and lens material. Double O-ring sealing with waterproof vent.
Colours
Blue, Red, Yellow, Green and White.
ICAO and SAE25050 (FAA) compliant chromaticity.
Ambient operation temperature (ALC)
-45 to 124 ºF (-43 to 51 ºC) ambient temperature.
The A650 will function up to 190 ºF (88 ºC) internal and surface temperatures.
Storage temperature
-45 to 176 ºF (-43 to 80 ºC)
Colour indicator
Yes, FAA Eng. Brief 67 compliant.
Weight
3.5 lb (1.58 kg)
Wind loading
400 mph (180 m/s)
Automatic light control
When enabled, ALC will dynamically reduce brightness in response to unusually low amounts of sunlight
to ensure continued operation.
Manufacturer
Carmanah Technologies Corp.
