Meteo-40M plus – Ammonit Measurement GmbH

Description

Applications:

New developments:

LTE and 4G modems e. g., PLS8-E and many more.
Web Interface and Email: TLS 1.1, 1.2, and 1.3 are supported.
Admin user can create new users or delete them.
Predefined users can be deleted.
Less latency in SCADA systems due to faster Modbus RTU and TCP
Latest Linux version and newest versions of security libraries like SSL, SSH, SFTP, SCP, https, etc.
Data can be sent with FTPS which makes industry standard encryption more accessible.

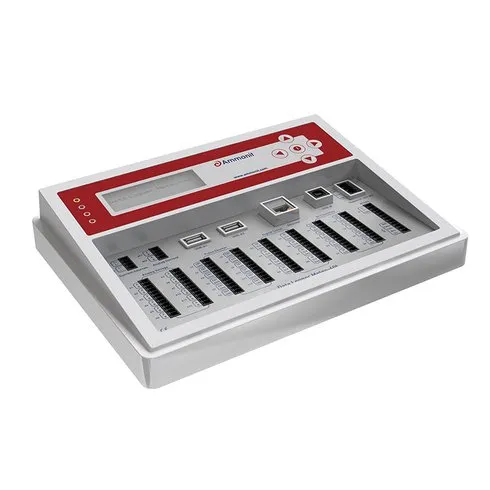

Meteo-40M plus
General Information
Order Number	M21020
Input Channels
Pulse Counters	8	Anemometers, precipitation sensors
Digital Serial (Status)	4	Wind vanes serial, precipitation monitors, ext. activation
Analog Voltage	8 ± 0.1 V, ± 1 V, ± 10 V, 16 bit	Air pressure, temperature, humidity sensors, pot. wind vanes, pyranometers, pyrheliometers
Analog Current	1 ± 1 mA, ± 10 mA, ± 100 mA, 16 bit	Sensors with DC output, e.g., temperature humidity sensor (0 ... 20 mA)
RS485 (M)	(1) RS485 Master for up to 8 smart sensors	Ultrasonic anemometers and smart sensors
Output Channels
RS485 (S)	(1) RS485 Slave	SCADA monitoring software
5V \| Switches	4	Sensor supply, relay for modem, heating supply
Current Source	1	Pt1000, Pt100
Connectivity
USB	(2) USB-A host (1) USB-B device	PC, modem, memory stick, WiFi, GPS, web cam
Ethernet	(1) Ethernet	Router, SAT-Modem, LAN and SCADA output
Data Transfer	Email, FTP, SCP, SFTP, FTPS, Datacopy on USB-Stick, SCADA
Data Cloud	SCP to AmmonitOR	https://or.ammonit.com
Remote Access to Data Logger	SSH reverse tunnel through AmmonitConnect Server	https://<serialnumber>.connect.ammonit.com/
Storage Size
Source Data (1-sec data)	2 GB
CSV Data (10-min data)	> 50 MB
Display & Keys
(20 x 4) LC display with backlight, five keys
Power Supply
9 ... 36 VDC
Operating Temperature
-40 ... +65 °C
Protection (Housing)
IP65
Housing Dimensions
260 x 194 x 50 mm
Weight
950 g
Accessories
External modules, plug connector, mounting kit, steel cabinet
