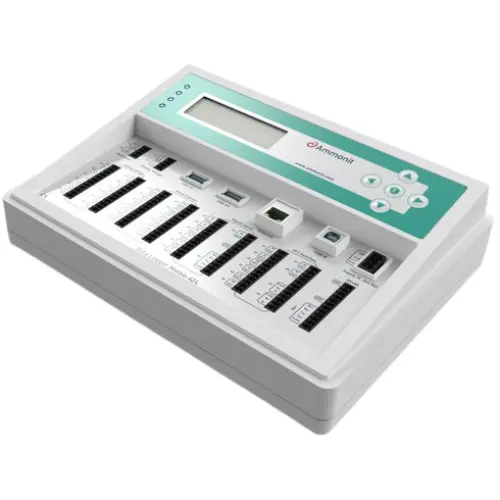

Meteo-42A

  • Order number
    M40150
  • Availability

    Usually on stock
Meteo-42 improvements: Three RS-485 ports * Faster processors * Better grounding for more accurate analog measurements * More flexible switches.

Description

Meteo-42 is easy to configure – from your office or directly on site – using the same communication tools and software as the Meteo-40 plus: AmmonitConnect and AmmonitOR cloud. Our data loggers are easy to install and work reliably worldwide.
Meteo-42 brings those technical innovations:
•    Three RS-485 ports
•    Faster processors
•    Better grounding for more accurate measurement of analog quantities
•    More flexible switches.

Meteo-42 will be available from August 2023 at the same price as Meteo-40 plus.



Specifications

Meteo-42A
General Information
Order Number M40150
Input Channels
Pulse Counters 2 Anemometers, precipitation sensors
Digital Serial (Status) 4 Wind vanes serial, precipitation monitors, ext. activation
Analog Voltage 14
± 0.1 V,
± 1 V,
± 10 V,
16 bit		 Air pressure, temperature, humidity sensors, pot. wind vanes, pyranometers, pyrheliometers
RS485 (Client) 2
RS485
Client
Interfaces		 Ultrasonic anemometers and smart sensors
Output Channels
RS485 (S) (1) RS485 Server SCADA monitoring software
5V | Switches 4 Sensor supply, relay for modem, heating supply
Current Source 1 Pt1000, Pt100
Reference Voltage Source 1 5 Volt reference source
Connectivity
USB (2) USB-A host (USB 2.0 High Speed)
(1) USB-B device (USB 2.0 High Speed)		 PC, modem, memory stick, WiFi, GPS, camera
Ethernet (1) Ethernet Router, satellite modem, LAN and SCADA output
Data Transfer Email, FTP, SCP, SFTP, FTPS, data copy on USB flash drive, SCADA, API From Meteo-42 data logger and from AmmonitOR Data Cloud
Data Cloud AmmonitOR Data Cloud https://or.ammonit.com
Data Cloud for campaign monitoring
Remote Access to Data Logger Ammonit Connect Remote Access to Data logger https://<serialnumber>.connect.ammonit.com/
Remote web UI access to data logger for configuration
Live Data XMPP messages Ammonit Live Data Suite with PubSub server, server side data collection, and web app for immediate
transmission and display of measurement data
Storage Size
Source Data (1-sec data) 2 GB enough for 6-12 months
CSV Data (10-min data) 0,5 GB enough for ≤ 15 years
Display & Keys
(20 x 4) LC display with backlight, five keys
Power Supply
9 ... 36 V DC
Operating Temperature
-40 ... +65 °C
Protection (Housing)
IP65
Housing Dimensions
260 x 194 x 67 mm
Weight
1110 g
Accessories
External modules, plug connector, mounting kit, steel cabinet
