Meteo-42L

Meteo-42 improvements: Three RS-485 ports * Faster processors * Better grounding for more accurate analog measurements * More flexible switches.

Description

Meteo-42 is easy to configure – from your office or directly on site – using the same communication tools and software as the Meteo-40 plus: AmmonitConnect and AmmonitOR cloud. Our data loggers are easy to install and work reliably worldwide.
Meteo-42 brings those technical innovations:
•    Three RS-485 ports
•    Faster processors
•    Better grounding for more accurate measurement of analog quantities
•    More flexible switches.

Meteo-42 will be available from August 2023 at the same price as Meteo-40 plus.

Meteo-42 Data Logger
Type
Meteo-42 M L A Description
Input Channels
Pulse Counters 8 12 2 Anemometers, precipitation sensors
Digital Serial (Status) 4 7 4 Wind-vane serial, precipitation monitors, external activation
Analog Voltage 8
± 0.1 V
± 1 V
± 10 V
16 bit
14
± 0.1 V
± 1 V
± 10 V
16 bit
14
± 0.1 V
± 1 V
± 10 V
16 bit
Air-pressure, temperature, humidity sensors, potentiometric wind vanes,

pyranometers, pyrheliometers

RS485 (Client) 2 3 2 Ultrasonic anemometers and smart sensors
Sensors with Ethernet output through Ethernet RS485 converter
Output Channels
RS485 (S) (1) RS485 Server SCADA monitoring software
5 V | Switches 4 8 4 Sensor supply, modem for relay, heating supply
Current Source 1 1 1 Pt1000, Pt100
Reference Voltage Source 1 1 1 5 V reference source
Connectivity
USB (2) USB-A host (USB 2.0 HS)
(1) USB-B device (USB 2.0 HS)
PC, Modem, memory stick (USB flash drive), Wi-Fi, GPS, camera
Ethernet (1) Ethernet Router, satellite modem, LAN & SCADA output
SCADA LAN (MODBUS TCP)
RS485 (MODBUS RTU)
Data transfer from Meteo-42 Email, FTP, SCP, SFTP, FTPS,
USB flash copy, SCADA
Data transfer from AmmonitOR Data Email, FTP, SCP, SFTP, API
Data cloud AmmonitOR Data Cloud or.ammonit.com – Data-cloud for campaign monitoring
Remote access to Data Logger Ammonit Connect Remote Access https://<serialnumber>.connect.ammonit.com/
Remote web UI access to data logger for configuration
Live data XMPP messages
(high frequency data output such as
1 second data output)
Ammonit Live Data Suite with PubSub server, server side data
collection, and web app for immediate transmission and display
of measurement data
Storage Size
Source Data (1 s) 2 GB / 4 GB (≥ 2025) enough for 6–12 months, 12–24 months (≥ 2025)
CSV Data (10 min) 0.5 GB enough for ≥ 15 years
General

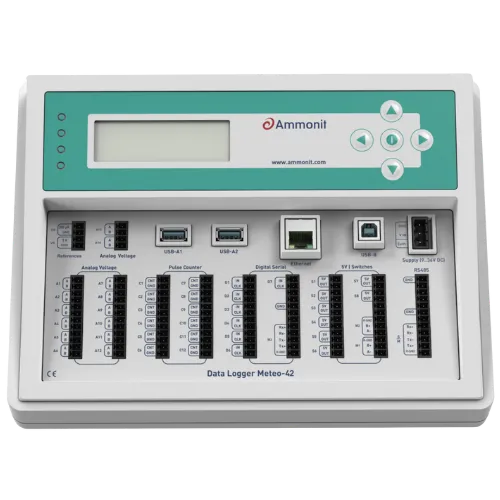

Display & Keys (20 × 4) LC display, backlight, five keys Meteo-42 data logger front view
Power Supply 9 … 36 V DC, 30 … 80 mA typ.
Operat. temperature –40 … +65 °C
Protection (Housing) IP65
Housing Dimensions 260 × 194 × 67 mm
Weight 1110 g
Accessories External modules, plug connector,
mounting kit, steel cabinet

Specifications

Meteo-42L
General Information
Order Number M31050
Input Channels
Pulse Counters 12 Anemometers, precipitation sensors
Digital Serial (Status) 7 Wind vanes serial, precipitation monitors, ext. activation
Analog Voltage 14
± 0.1 V,
± 1 V,
± 10 V,
16 bit
Air pressure, temperature, humidity sensors, pot. wind vanes, pyranometers, pyrheliometers
RS485 (Client) 3
RS485
Client
Interfaces
Ultrasonic anemometers and smart sensors
Output Channels
RS485 (S) (1) RS485 Server SCADA monitoring software
5V | Switches 9 Sensor supply, relay for modem, heating supply
Current Source 1 Pt1000, Pt100
Reference Voltage Source 1 5 Volt reference source
Connectivity
USB (2) USB-A host (USB 2.0 High Speed)
(1) USB-B device (USB 2.0 High Speed)
PC, modem, memory stick, WiFi, GPS, camera
Ethernet (1) Ethernet Router, satellite modem, LAN and SCADA output
Data Transfer Email, FTP, SCP, SFTP, FTPS, data copy on USB flash drive, SCADA, API From Meteo-42 data logger and from AmmonitOR Data Cloud
Data Cloud AmmonitOR Data Cloud https://or.ammonit.com Data Cloud for campaign monitoring
Remote Access to Data Logger Ammonit Connect Remote Access to Data logger https://<serialnumber>.connect.ammonit.com/
Remote web UI access to data logger for configuration
Live Data XMPP messages Ammonit Live Data Suite with PubSub server, server side data collection, and web app for immediate
transmission and display of measurement data
Storage Size
Source Data (1-sec data) 2 GB enough for 6-12 months
CSV Data (10-min data) 0,5 GB enough for ≤ 15 years
Display & Keys
(20 x 4) LC display with backlight, five keys
Power Supply
9 ... 36 V DC
Operating Temperature
-40 ... +65 °C
Protection (Housing)
IP65
Housing Dimensions
260 x 194 x 67 mm
Weight
1110 g
Accessories
External modules, plug connector, mounting kit, steel cabinet
