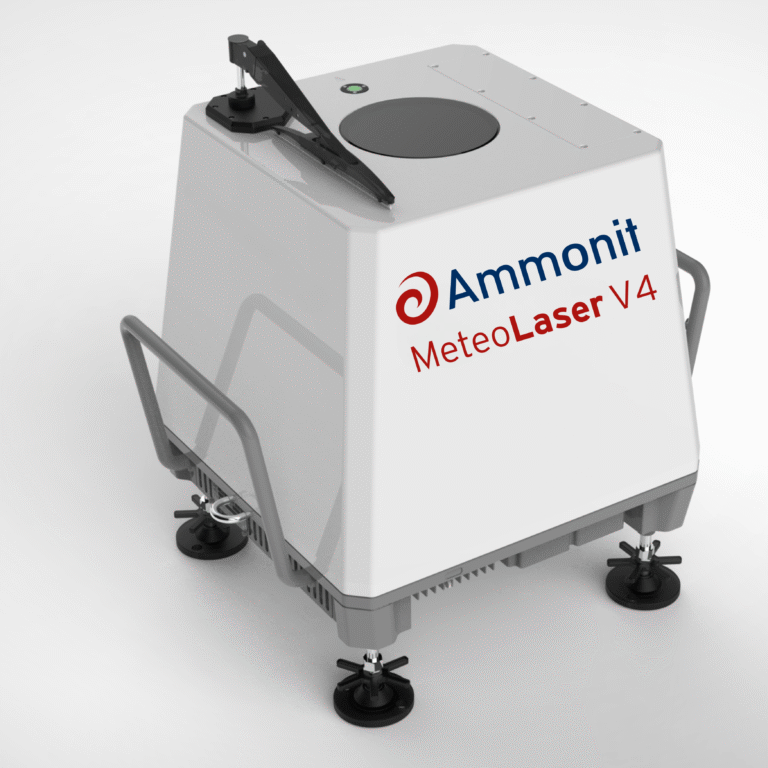

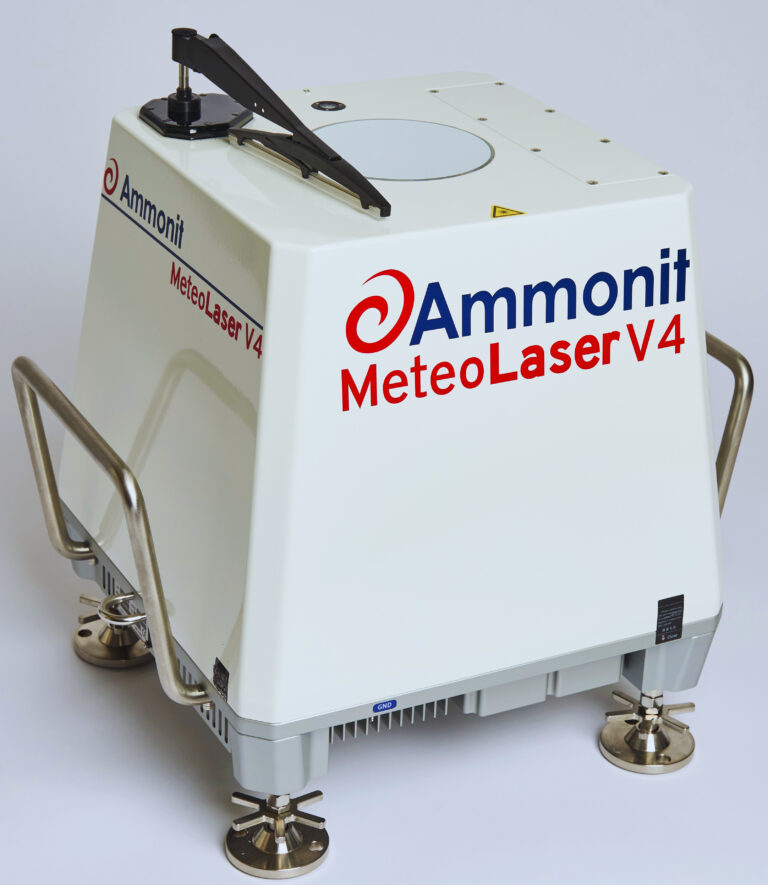

MeteoLaser LiDAR

  • Order number
    S97210
  • Availability

    Usually on stock
Pulsed Doppler LiDAR Version 2: compact dimensions, IP67 Super low power consumption: < 35 W without heating or cooling

Description

Mobile measurement for a wide range of applications

The MeteoLaser LiDAR accurately measures horizontal and vertical wind speeds and directions up to 300 meters. It measures pressure, temperature and humidity through the PTH sensor module.

The MeteoLaser LiDAR can be used

  • in wind resource assessment,
  • in micro-siting of wind farms,
  • power performance of wind turbine,
  • wind park monitoring,
  • offshore wind measurement systems and other places where mobile wind measurements are required.



Specifications

MeteoLaser LiDAR
General
Order Number S97210
Type of LiDAR Pulsed Doppler LiDAR
Size & Weight
Size (without packaging) 390 × 390 × 340 mm (Length × Width × Height)
Size (with packaging) 600 × 600 × 600 mm (Length × Width × Height)
Weight (without packaging) 32 kg
Weight (with packaging) 60 kg
Specifications

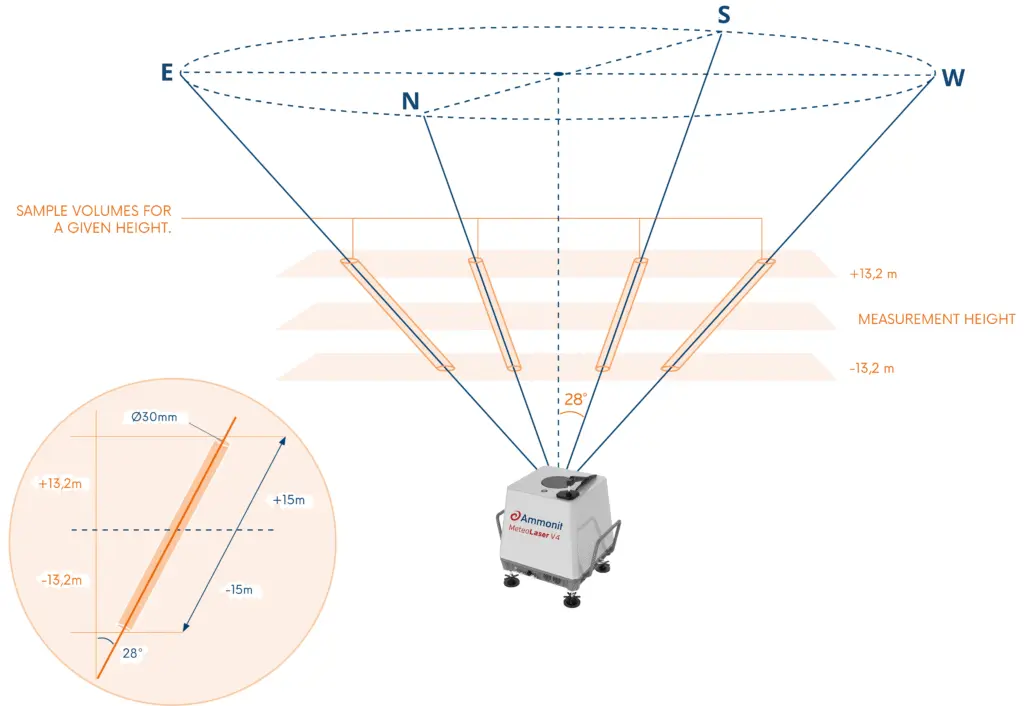

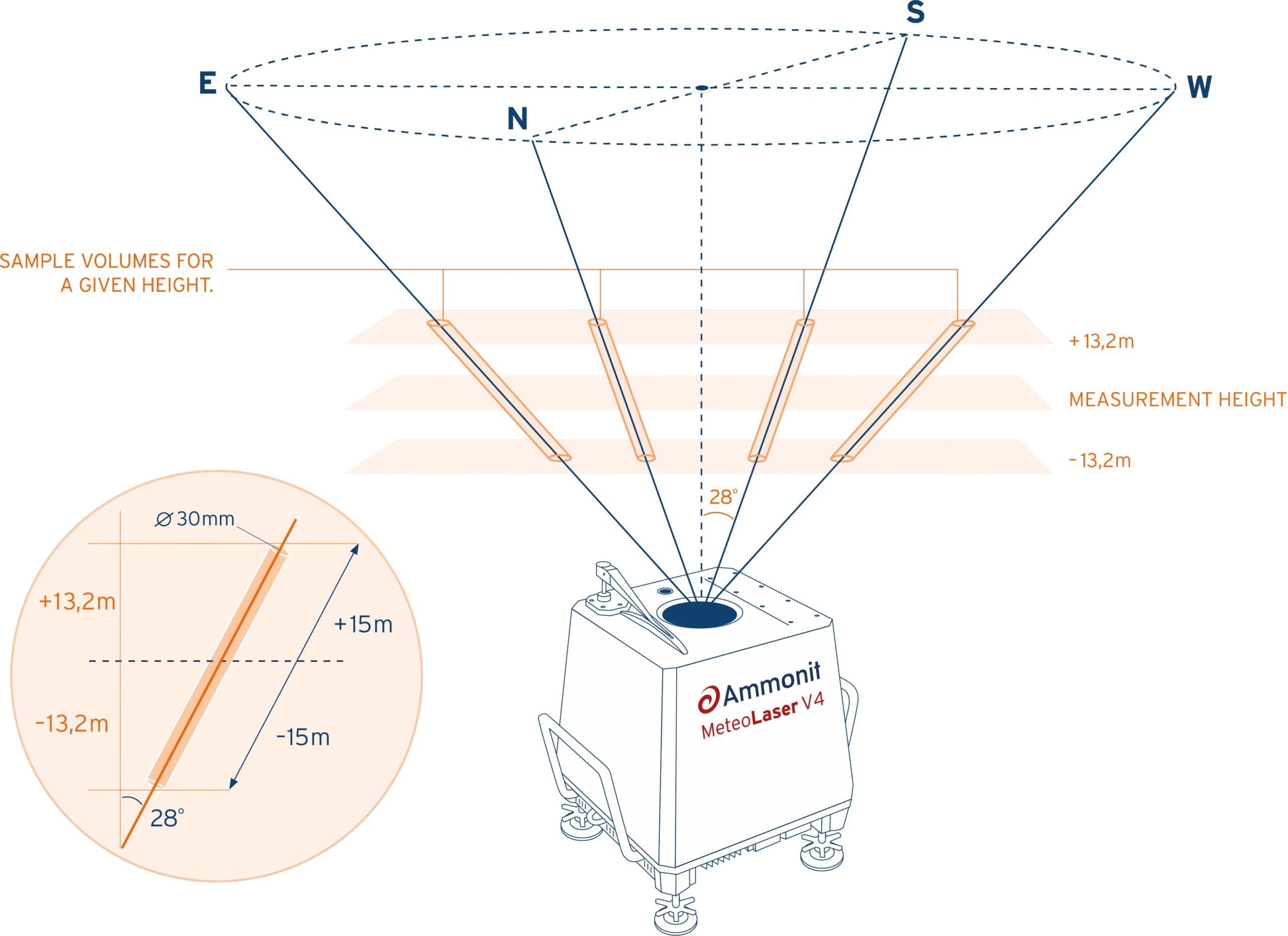

Number of laser beams 4 laser beams (N, E, S, W)
Angle of laser beam 28° to vertical
Measurement range 40 to 300 m
Measurement heights 12 heights
Measurement cycle duration ~0.8 s per beam, ~3.2 s for 4 beams
Accuracy horizontal wind speed 0.1 m/s *
Wind speed range 0 to 80 m/s
Accuracy wind direction 1° *
Power & Environment
Power supply requirements 18 to 32 V DC / 93 to 263 V AC (50–60 Hz)
Power consumption LiDAR alone: 30 W
With cooling: 35 W
With heating: 50–70 W
Operating temperature range -40°C to 60°C
Humidity range 0% to 100% RH (non-sourced)
Protection level IP67
Eye safety standard Class 1M IEC/EN 60825-1
Connectivity
Hardware interface 4G-Router, Ethernet, Laptop connection, USB for GPS-tracking
Data format 10 minutes files CSV files, 1 second data CSV files
Memory size 100 GB available for CSV files
Remote access interface Web application over AmmonitConnect (SSH reverse Tunnel)
Data transfer protocols Emails, FTP, SCP, SFTP from AmmonitOR
Data cloud AmmonitOR Data Cloud
Compliance
Factory report against golden LiDAR Included for free
IEC 61400-12-1 verification Available for purchase
IEC 61400-12-1 classification (MeteoLaser Version 1) Available
Note
*depending on environmental conditions, see classification report

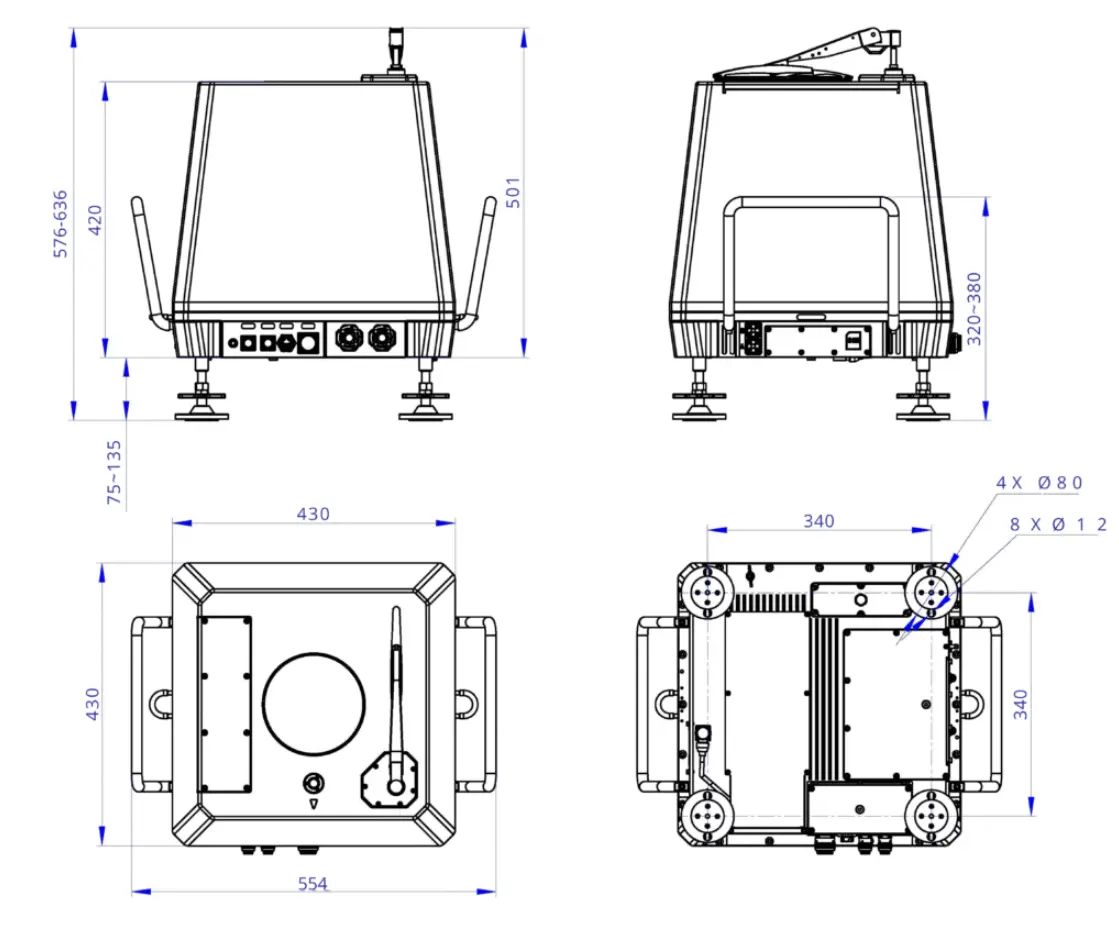

Dimensional drawing

MeteoLaser LiDAR
