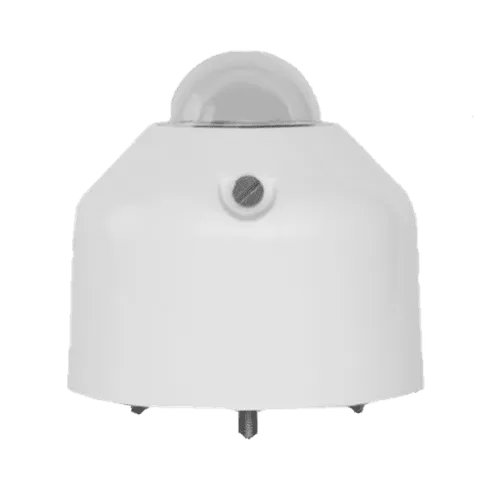

Pyranometer EKO MS‐60S – Ammonit Measurement GmbH

Description

ISO 9060 Spectrally flat Class B + IEC 17025 calibrated
5-year warranty
MS-60 with analog voltage output.

The new double dome constructions provides lower offsets and cosine errors. The MS-60 can be used with the optional MV-01 ventilator / heater.

The MS-60 pyranometers are manufactured in a consistent way followed by strict quality inspection and performance evaluation. EKO provides a unique calibration compliant to the international standards defined by ISO/IEC17025/9847.

The sensor has a 5 years warranty with a 2 years re-calibration interval recommended and it is no longer necessary to change the desiccant.

Specifications

Pyranometer EKO MS‐60S
General Information
Order Number	S6413X
Specifications
Classification	ISO 9060:2018 Class A + IEC 17025 calibration ISO 9060:1990 Secondary Standard
Output	Current Output 0…10 mA / 4…20 mA / Modbus RTU via RS485
Typical Sensitivity	10 µV/W/m²
Wavelength Range	285…3 000 nm
Max. Operational Irradiance	2 000 W/m²
Measurement Range of Irradiance	0…1 600 W/m²
Response Time (95%)	< 18 s
Zero Offset (a) 200 W/m²	± 5 W/m²
Zero Offset (b) 5 k/hr	± 2 W/m²
Zero Offset (c) complete	± 7 W/m²
Non-linearity @ 1000 W/m²	± 1 %
Non-stability Change/1 Year	± 1.5 %
Directional Response @ 1000 W/m²	± 18 W/m²
Spectral Error	± 0.2 %
Temperature Response (-10…+40°C)	± 2 %
Temperature Response (-20…+50°C)	± 4 %
Tilt Response @ 1000 W/m²	± 1 %
Operating Temperature	-40…+80 °C
Power Supply	0…10 mA: 5…30 VDC 4…20 mA: 5…30 VDC Modbus RTU: 5…30 VDC
Power Consumption	0…10 mA: < 0.2 W 4…20 mA: < 0.2 W Modbus RTU: < 0.2 W
Cable Length	10 m
Protection Class	IP67
Warranty	5 years
Manufacturer
EKO Instruments
Accessory
MS Albedo Mounting Kit M83570 M83750 Precision Shunt 100 Ω MV-01 ventilator / heater (Order-No. S64060)
Delivery includes IEC 17025 calibration certificate.

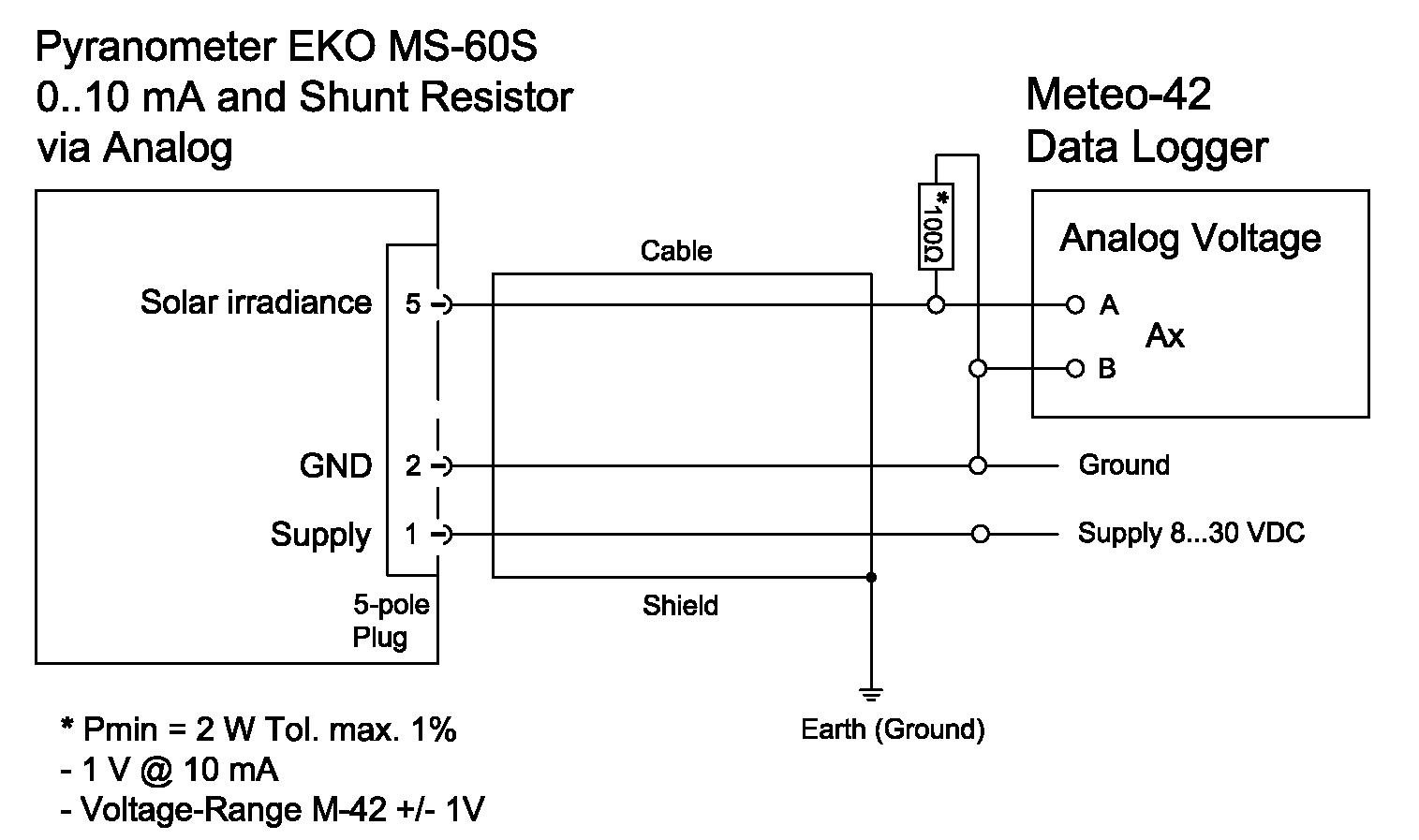

Sensor connection diagram
