Description

Build as solar module – easily comparable to energy yield and system performance of PV systems
Optional cell temperature as alternative to directly measured module temperature
Output signal: 0 … 10 V for irradiance and cell temperature

Silicon irradiance sensors show a cost-effective, but rugged and reliable solution for irradiance measurement. Based on the construction of the sensor element corresponding to a PV module they are ideal as reference for monitoring of PV systems. Especially the spectral response comparable to PV modules as well as the similar inclination error (incident angle modifier) allow an exact analysis of PV energy yields using Si sensor data.

Specifications

Silicon Irradiance Sensor M&T 0-10V
General Information
Order Number	S68120 (Si-V-10TC) / S68261 (Si-V-10-TC-T)
Sensor Specifications
Solar Cell	Monocrystalline silicon (50 × 33 mm)
Measurement Uncertainty (Irradiance)	± 5 W/m² / ±2.5% of reading (valid for temperature compensation, spectrum AM 1.5 and vertical light beam)
Measurement Uncertainty (Internal Temp.)	Si-V-10TC: – Si-V-10-TC-T: 1.0 K @ -35 … 70 °C / 1.1 K @ -35 … 80 °C
Response Time (99%)	0.15 s
Offset	2 W/m²
Non-Linearity	0.10 %
Temperature Dependence	0.40 % @ -35 … 80 °C
Electrical
Power Supply	24 VDC (12 … 28 VDC) Si-V-10TC: typ. < 1 mA Si-V-10-TC-T: typ. < 2 mA
Load Impedance	min. 100 kΩ
Output Signal (Irradiance)	0 … 10 V @ 0 … 1500 W/m²
Output Signal (Cell Temperature)	Si-V-10TC: – Si-V-10-TC-T: 0 … 10 V @ -40 … 90 °C
Environmental & Mechanical
Sensor Connection	LiYC11Y 4 × 0.14 mm² UL20233; typical length 3 m, UV- and temperature resistant
Operating Temperature	-35 … +80 °C
Housing Material	Powder-coated aluminium, IP65
Dimensions / Weight	155 × 85 × 39 mm / approx. 350 g
Manufacturer
Ingenieurbüro Mencke & Tegtmeyer GmbH

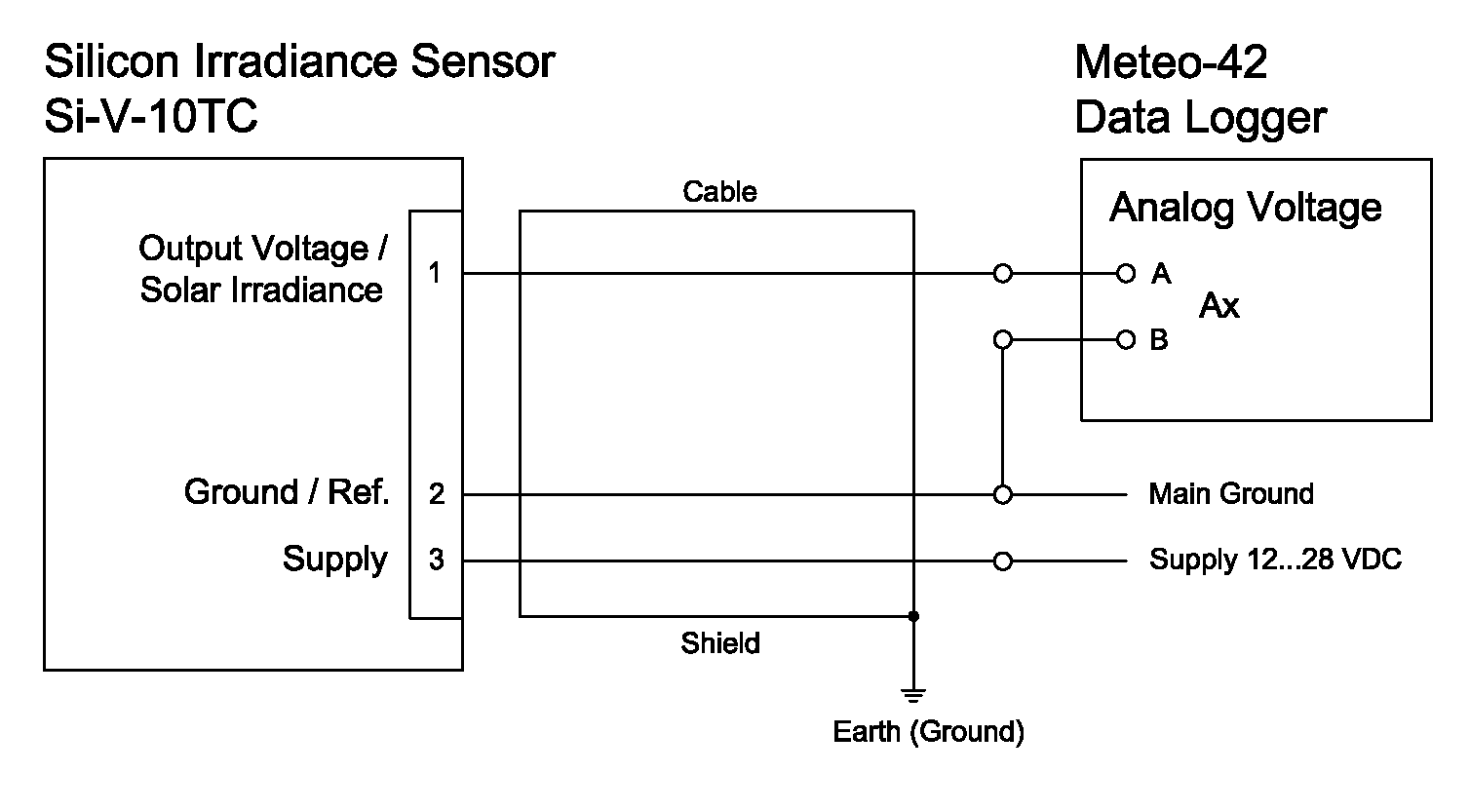

Sensor connection diagram

Si-V-10TC (S68120)

Sensor	Plug PIN No.	Wire Colour Sensor Cable	Meteo-40 Analog Voltage
Solar irradiance	1	orange	Ax
Solar irradiance Ground / Ref.*			Bx (Main Ground)
Ground / Ref.	2	black	Main Ground
Supply	3	red	12 ... 28 VDC

*Minus signals are identical to Ground
Cable type: LiYC11Y 4 x 0.14 mm² (cable length: 3m)
Connect the shield logger-sided to Ground (GND)

Si-V-10TC-T (S68261)

Sensor	Plug PIN No.	Wire Colour Sensor Cable	Meteo-40 Analog Voltage
Temperature	1	brown	Ax
Temperature Ground / Ref.*			Bx (Main Ground)
Solar irradiance	2	orange	Ax+1
Solar irradiance Ground / Ref.*			Bx+1 (Main Ground)
Ground / Ref.	4	black	Main Ground
Supply	3	red	12 ... 28 VDC

*Minus signals are identical to Ground
Cable type: LiYC11Y 4 x 0.14 mm² (cable length: 3m)
Connect the shield logger-sided to Ground (GND)
