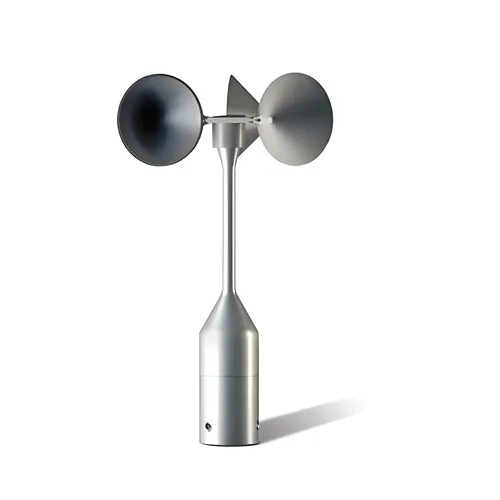

Anemometer WindSensor (Risø) P2546D-OPR

  • Order number
    S16300C
  • Availability

    On request
MEASNET calibrated anemometer

Description

  • MEASNET calibrated anemometer
  • One-piece rotor anemometer head
  • Low threshold speed
  • Short distance constant
  • Negligible overspeeding
  • Angular response independent of wind speed
  • Symmetrical geometry
  • No external power source
  • Individually calibrated compliant with IEC 61400-12-1

Specifications

Anemometer WindSensor (Risø) P2546D-OPR
General Information
Order Number S16300C
Measurement
Calibration Each anemometer individually calibrated compliant with IEC 61400-12-1.
Measurement range 0 … 75 m/s
Slope 0.620 m
Offset 0.21 m/s
Starting threshold < 0.3 m/s
Distance constant λ0= 1.81 ± 0.04 m
Switching Characteristic
Signal Type NPN open collector, frequency proportional to wind speed
Duty cycle 45 … 55 %
Max. switching voltage 30 V
Max. recommended switching current 10 mA
Output resistance 60 Ω
Environmental
Operating temperature range -40 … +60 °C
Construction
Exterior materials Anodized aluminum, Stainless steel and GRP
Weight 0.36 kg
Overall height 282 mm
Swept diameter of rotor 188 mm
Manufacturer
Manufacturer WindSensor
Accessories
Accessories Module M83570 or M83200 (pull-up resistor 5.1 kΩ required)

Dimensional drawing

Sensor connector diagram of the Anemometer Wind Sensor model P2546D-OPR S16300C.

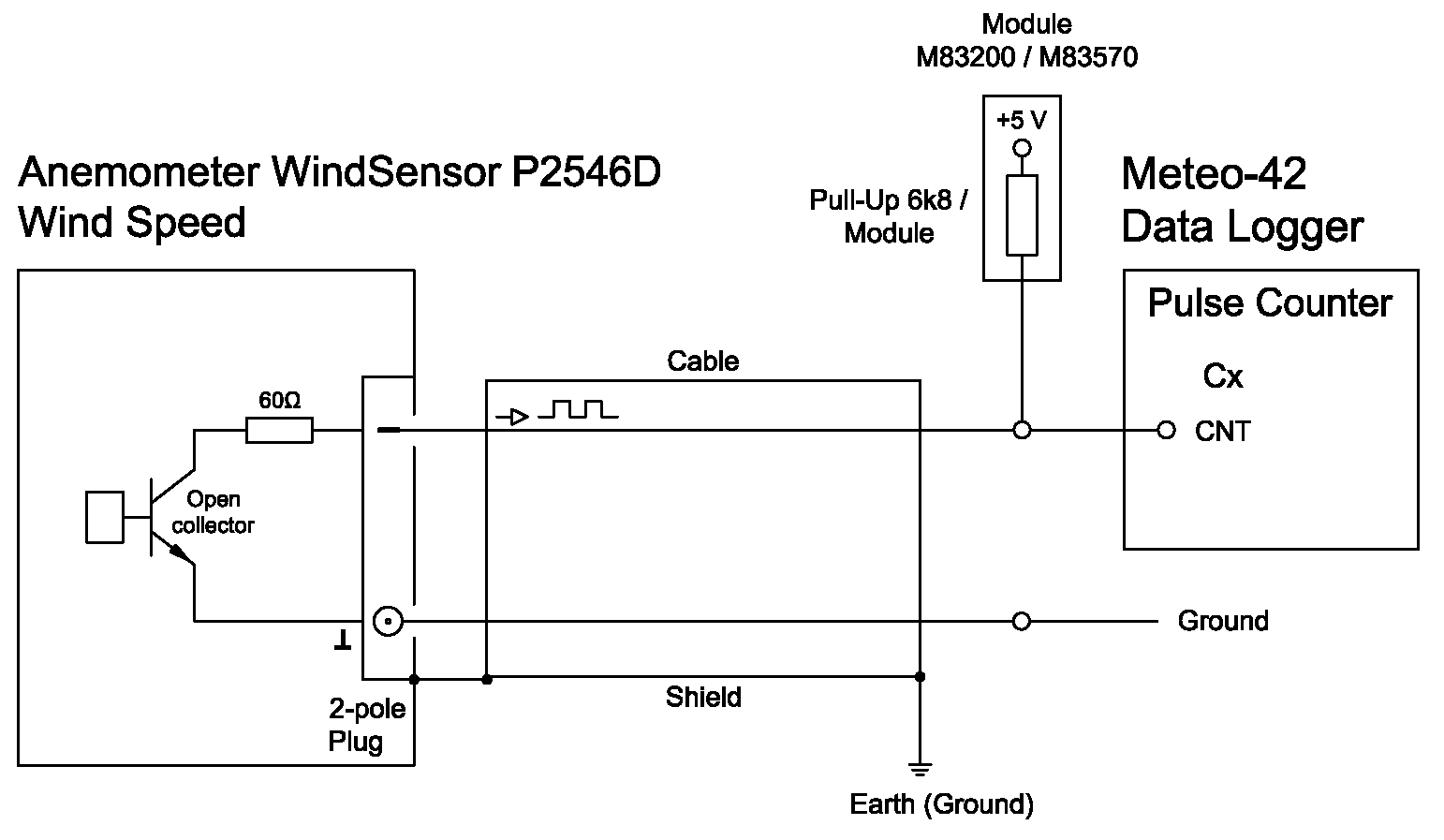

Sensor connection diagram

Sensor connection diagram to Ammonit Meteo-40 Data Logger
Sensor Ammonit Wire Color Meteo-40
Counter		 Supply
Sensor
Signal, high white Counter CNT, 6k8 (Switch: 5 V via 6k8 to CNT, Pull-up resistor)
Signal, low black   Main Ground
Cable type: LiYCY 2 (3) x 0.25 mm²
Connect the shield logger-sided to Ground (GND).
