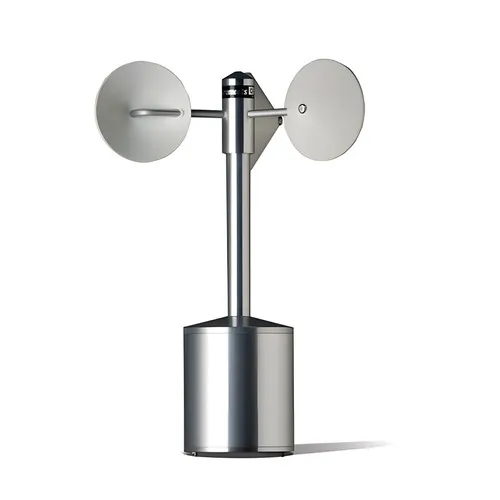

Anemometer Windspeed (Vector) A100LM/PC3

  • Order number
    S14100
  • Availability

    On request
Opto-electronic wind speed transmitter

Description

  • Opto-electronic wind speed transmitter
  • Classified according to IEC standard
  • “Low Power”, high frequency output signal
  • Range 0.2 … 75 m/s
  • Resolution < 0.5 m/s
  • Low power, pulse output only
  • Consumes 1 mA while operating from the logger’s battery supply.

Measurement principle
The low-inertia 3-cup rotor is set into rotation by the wind. The wheel is scanned optoelectronically and the measuring value is available at the output as a digital signal.

Specifications

Anemometer Windspeed (Vector) A100LM/PC3
General Information
Order Number S14100
Measurement
Measurement Range 0 ... 75 m/s
Accuracy ± 0.2 m/s (<10 m/s); ± 2% of reading (> 10m/s)
Resolution 0.05 m/s
Non-Linearity 0.4 % full-range output frequency (correction curve supplied)
Starting Wind Speed 0.2 m/s
Survival Wind Speed max. 75 m/s
Distance Constant 2.3 m ± 10 %
Ambient Temperature -30 ... +70 °C
Transducer
Type Interruption of optical beam
Operating Supply 4.75 ... 28 VDC (max 1.3 mA, average is typically less than 1 mA)
Electrical Output 0 ... 750 Hz
Connection
Termination cable length 3 m
Physical
Materials Anodized aluminium, weather-resisting plastics
Weight (Anemometer) 0.5 kg (Gross weight for shipping: 1 kg)
Service
Recalibration recommended interval every 24 months
Manufacturer Vector Instruments / UK (A100LM)

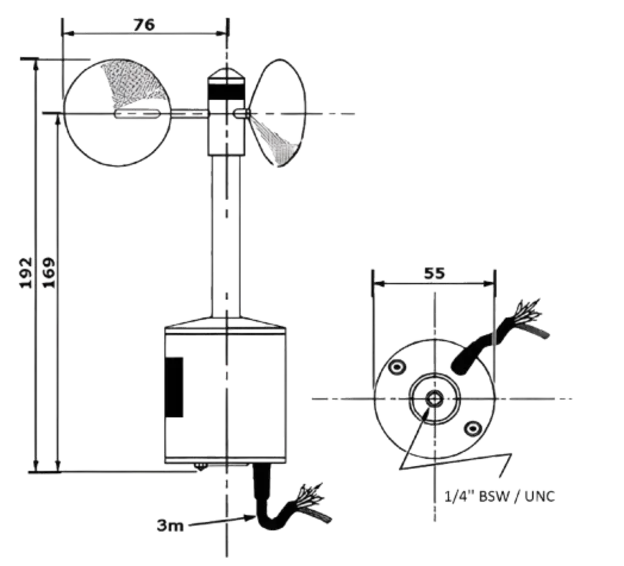

Dimensional drawing

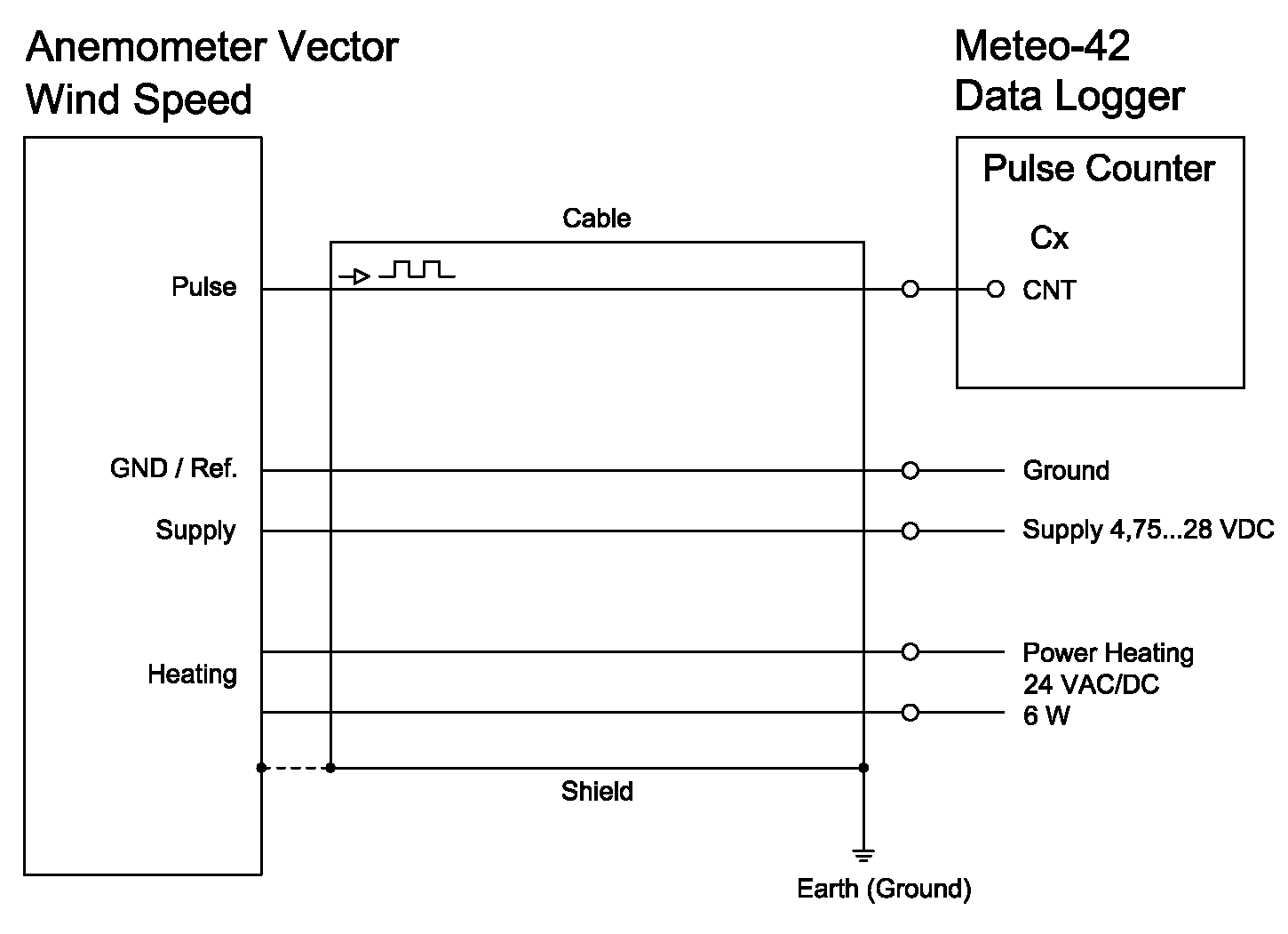

Sensor connection diagram

Sensor connection diagram to Ammonit Meteo-40 Data Logger
Sensor Manufacturer
Wire Color		 Ammonit Cable
Wire Color*		 Meteo-40
Counter		 Supply
Sensor
Wind speed Pulse output white white CNT
Supply red red   4.75 ... 28 VDC, 1 mA typ.
Ground blue, yellow black   GND
Heating brown orange, orange   24 V / 6 W, 250 mA
Heating violet violet, violet
* with Junction box
Cable type without heating wires: LiYCY 3 x 0.25 mm²
Cable type with heating wires: LiYCY 7 x 0.25 mm²
