Description

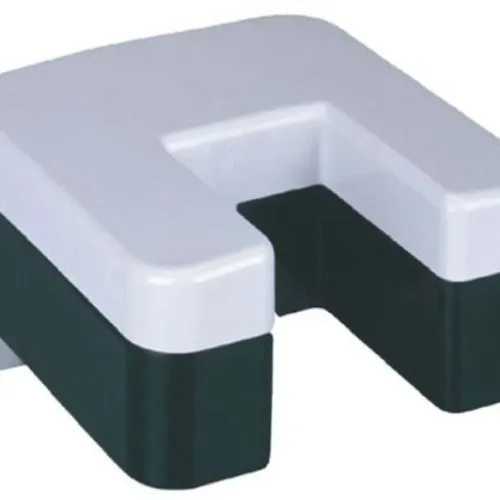

The Thies Precipitation Monitor transmits signals to determine the beginning and end of precipitation as well as the duration of the period of precipitation.
On request
Ammonit Measurement GmbH
Measuring wind and solar power
Wrangelstrasse 100・10997 Berlin・Germany
+49 30 moc.tinomma@ofni・08813006
The Thies Precipitation Monitor transmits signals to determine the beginning and end of precipitation as well as the duration of the period of precipitation.
| Precipitation Monitor Thies | |
|---|---|
| General Information | |
| Order Number | S72100H / S72110H |
| Measurement | |
| Measuring Value | Status of precipitation |
| Drop Size | ≥ 0.2 mm |
| Switch-on Condition | 1 … 15 incidences within 50 seconds |
| Switch-on / -off Delay | none / 25 … 375 seconds |
| Operating Range | |
| Ambient Temperature | -30 … 60°C |
| Electrical Data | |
| Electrical Supply |
12 - 28 VDC / 50 mA 1.2 A @ 24 VDC |
| Relais |
S72100H: HZ Modus A S72110H: HZ Modus C |
| General | |
| Mounting | Mounting on mast tube Ø 34 … 50 mm |
| Dimension | 38 x 125 x 136 mm (height x width x length) |
| Weight | 0.4 kg |
| Protection | IP 65 |
| Manufacturer | |
| Manufacturer | Thies |
| Sensor connection diagram to Ammonit Meteo-40 data logger |
 |
