Description
The Thies Precipitation Monitor transmits signals to determine the beginning and end of precipitation as well as the duration of the period of precipitation.
Usually on stock
Ammonit Measurement GmbH
Measuring wind and solar power
Wrangelstrasse 100・10997 Berlin・Germany
+49 30 moc.tinomma@ofni・08813006
The Thies Precipitation Monitor transmits signals to determine the beginning and end of precipitation as well as the duration of the period of precipitation.

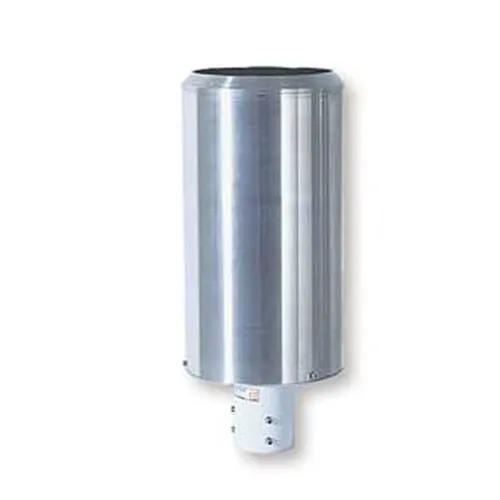

| Precipitation Sensor Thies | |
|---|---|
| General Information | |
| Order Number | S71100 / S71100H |
| Specifications | |
| Collector Surface | 200 cm² |
| Resolution | 0.1 mm per tipping-bucket pulse |
| Measuring Range | 0 … 11 mm/min |
| Accuracy Output | ±3 % (tested under laboratory conditions with distilled water) |
| Measuring Principle | tipping-bucket |
| Ambient Temperature | 0 … +60 °C (without heating), -25 … +60 °C (with heating) |
| Output Signal 1 (Reed Contact with Linearization) | |
| Pulse Length | 125 ms |
| Tipping-Bucket Frequency | 0 … 2 Hz |
| Operating Voltage | 5 VDC |
| Output Signal 2 | |
| Pulse Length | 50 ms |
| Pulse Frequency | 0 … 2 Hz |
| Contact Load | max. 0.5 W |
| Contact Voltage (Vcc) | max. 42 V |
| Heating | 24 VAC/DC; 48.5 W |
| Montage | onto mast tube Ø 50 mm |
| Weight | 3.3 kg |
| Manufacturer | |
| Manufacturer | Thies |
| Accessories | |
| Accessories | Module M83200 or M83570 |

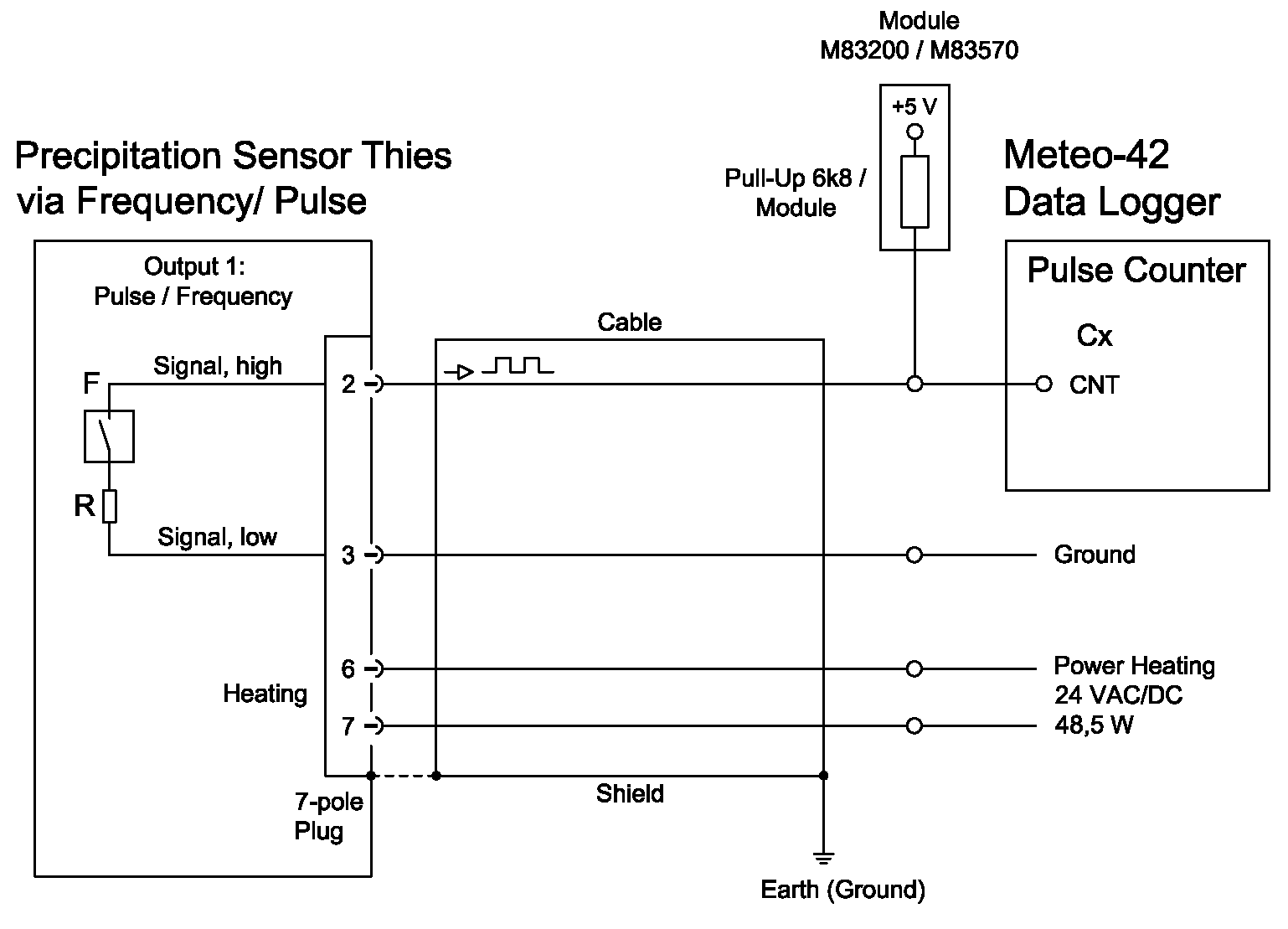

| Sensor connection diagram to Ammonit Meteo-40 data logger |
 |
