Temperature / Humidity sensor Galltec KPC active

Description

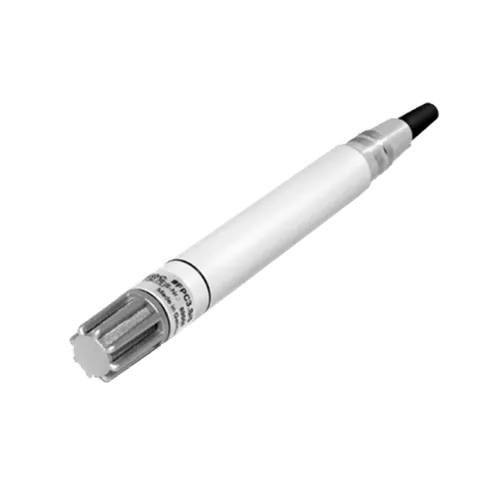

The temperature humidity sensors are compact sensors in a rod-design with plug-in connection to measure relative humidity and temperature (individually or together) with high precision in air an other non-aggressive gases.
The delivery includes the coupling plug.
The relative humidity is measured by a capacitive sensing element and the value will be placed at the output as analog output as well.

Temperature / Humidity Sensor Galltec KPC Active
General Information
Order Number	S52100
Measurement
Measurement Principle	Temperature Sensor: Pt100 1/3 DIN acc. DIN EN 60751 Humidity Sensor: Pt100 1/3 DIN acc. DIN EN 60751
Measurement Range	Temperature Sensor: -30 ... +70 °C Humidity Sensor: 0 ... 100% RH
Slope (Data Logger Meteo-40)	Temperature Sensor: 100 Humidity Sensor: 100
Offset (Data Logger Meteo-40)	Temperature Sensor: -30 Humidity Sensor: 0
Accuracy
Accuracy	Temperature Sensor: ± 0.2 K (-27 ... +80 °C) Humidity Sensor: ± 2% RH (5 ... 95% RH @ 10 ... 40 °C)
Additional Error	Temperature Sensor: ± 0.007 K/K (<10 °C, >40 °C) Humidity Sensor: < 0.1 %/K (<10 °C, >40 °C)
Operating Range
Ambient Temperature	-40 ... +80 °C
Minimum Air Speed (across sensor)	≥ 0.5 m/s
Electrical Data
Output Signal	0 ... 1 V
Operating Supply	6 ... 30 VDC
Current Consumption @ 12 V DC	2 mA
General
Connection	7-pol plug for shielded cable
Dimensions	155 x Ø 20 mm
Weight	approx. 0.1 kg
Protection Sensor	IP 30
Protection Electronic	IP 65
Protection Coupling	IP 67
Manufacturer	Galltec

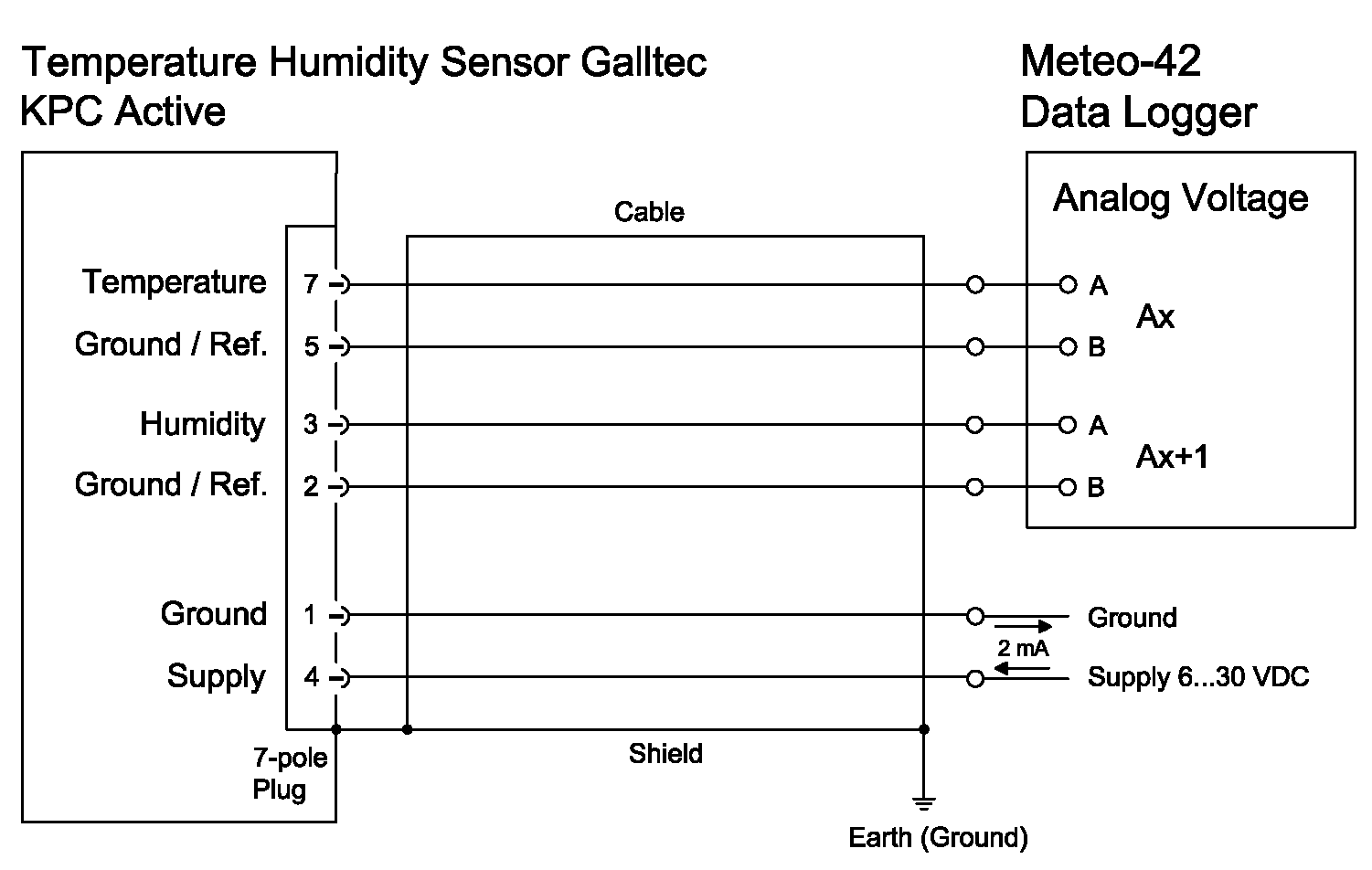

Sensor connection diagram to Ammonit Meteo-40 data logger

Sensor	Plug Pin No.	Ammonit Cable Wire Colour	Meteo-40 Analog Voltage	Supply Sensor
Temperature Output Voltage	7	white	Ax
Ground	5	blue	Bx
Humidity Output Voltage	3	brown	Ax+1
Ground	2	pink	Bx+1
Supply	4	red		9 ... 30 VDC*
Ground	1	black		Main Ground

*Supply voltage for usage with Meteo-40 data loggers
Cable type: LiYCY 4 x 0.25 mm²
Connect the shield logger-sided to Ground (GND)
