Temperature sensor Galltec TPC active

  • Order number
    S42100
  • Availability

    Usually on stock
Compact sensor with fixed connected cable

Description

  • The temperature humidity sensor series „xP“ are compact sensors in stick version with fixed connected cable.
  • The relative humidity is measured by a capacitive sensing element and the value will be placed at the output as analogue signal.
  • The temperature measurement is made by a P100-resistor (1/3 DIN).
  • The signal is available as an analogue output as well.
  • The sensors are obtainable as single temperature probe or as combined sensor for temperature and humidity measurement.

Specifications

Temperature Sensor Galltec TPC Active
General Information
Order Number S42100
Measurement
Measurement Principle Pt100 1/3 DIN acc. DIN EN 60751
Measurement Range -30 ... +70 °C
Slope (Meteo-40) 100
Offset (Meteo-40) -30
Accuracy ± 0.2 K (-27 ... +80 °C)
Additional Error ± 0.007 K/K (<10 °C, >40 °C)
Operating Range
Ambient Temperature -40 ... +80 °C
Minimum Air Speed (across sensor) ≥ 0.5 m/s
Electrical Data
Output Signal 0 ... 1 V
Operating Supply 6 ... 30 VDC
Current Consumption @ 12 V DC 2 mA
General
Connection 7-pol plug for shielded cable
Dimensions 155 x Ø 20 mm
Weight approx. 0.1 kg
Protection Sensor IP 30
Protection Electronic IP 65
Protection Coupling IP 67
Manufacturer Galltec

Sensor connection diagram

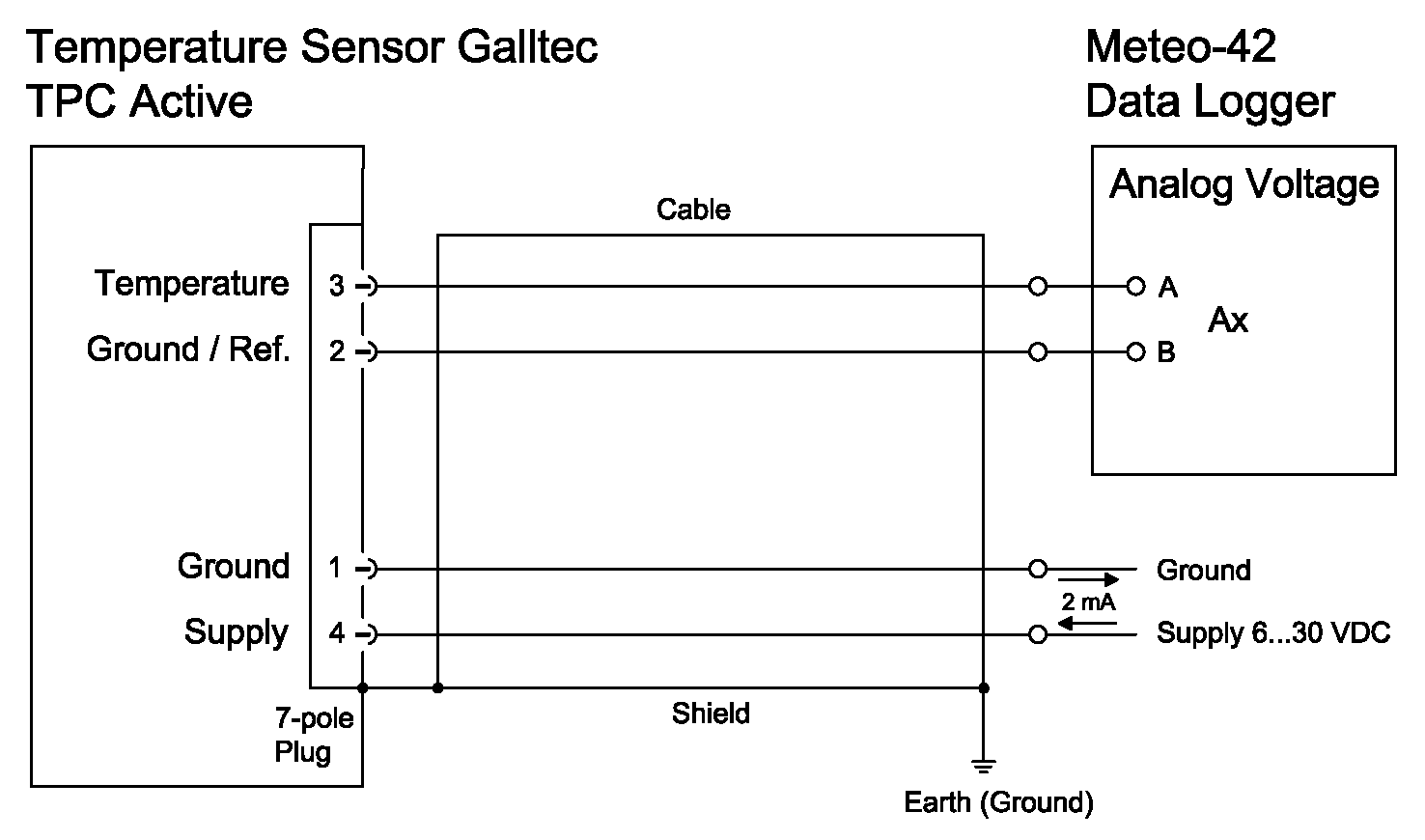

Sensor connection diagram to Ammonit Meteo-40 data logger
Sensor Plug Pin No. Ammonit Cable Wire Colour Meteo-40 Analog Voltage Supply
Sensor
Temperature
Output Voltage		 3 white Ax
Ground 2 blue Bx
Supply 4 red   9 ... 30 VDC*
Ground 1 black   Main Ground
*Supply voltage for usage with Meteo-40 data loggers
Cable type: LiYCY 4 x 0.25 mm²
Connect the shield logger-sided to Ground (GND)
