Description
- Matt black undersides to reduce solar radation influxes
- Proven toughness, UV stability and salt spray resistance
- Easily dismantlable; additional cable routing
Design features

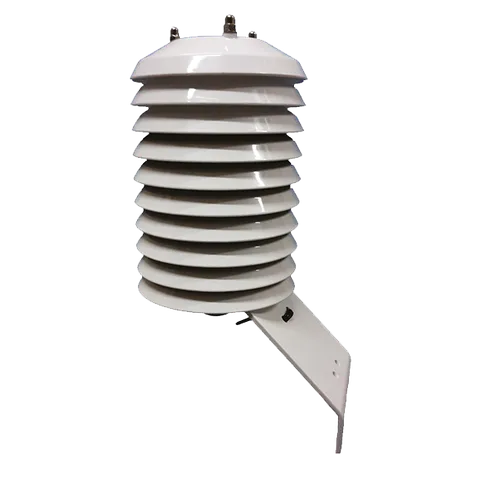

The Weather and Radiation Shield features a unique double louvered profile design which gives better protection, keeping the interior drier and cleaner for longer. The second key element is the black underside of the lamellas to remove reflected solar radiation influxes away from the sensor tips.
The Weather and Radiation Shield helps to ensure that measurement accuracy maintains and sensors are protected from blowing precipitation, insect life and debris.
The compact and rugged weather and radiation shield provides excellent measurement performance. The shield is made of double louvred high impact UV-stable polycarbonate plastic louver plates. In order to reduce solar radiation influxed the shield has matt black undersides. The outside of the shield is made of gloss white aluminium with a durable white polyester powder coating. The weather and radiation shield fits onto horizontal and vertical structures. It is mounted via a stainless steel ‘V’ bolt using securing nuts to fit a pole of 25 … 51 mm in diameter.
