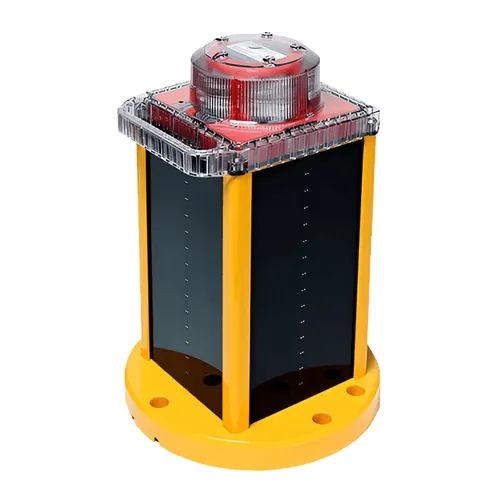

Obstacle Light Carmanah OL800

  • Order number
    M91210
  • Availability

    On request
Easy to install low-intensity solar LED obstacle light

Description

  • Sold with complete measurements systems only
  • Easy to install low-intensity solar LED obstacle light
  • Meets ICAO requirements for Low-Intensity Obstacle Lights Type A and Type B, according to ICAO Annex 14, Volume 1, 5th Edition, July 2009 and 6th Edition, July 2013 (Red).
  • Compliant with Obstruction Light Type L-810 as per FAA Advisory Circular AC 150/5345-43G 09/26/12 (Red).

Specifications

Obstacle Light Carmanah OL800
General Information
Order Number M91210
Technical Specifications
Optical

High powered LEDs meet IES LM-80 lumen maintenance consistent photometrics for life of product

FAA: Meets Obstruction Light Type L-810 as per FAA Advisory Circular AC 150/5345-43G 09/26/12 (Red.)

Complies with ICAO Low-Intensity Obstacle Light Type A & B - Annex 14, 5th Edition, July 2009 (Red.) and 6th Edition, July 2013 (Red.)

Meets requirements for CASA 10 cd (Part 139, Vol. 2)

ICAO, SAE25050 (FAA) and FAA EB 67 compliant chromaticity: Red, Green, White and Yellow

Steady-on and 250+ flash patterns
Energy collection Best in-class high efficiency solar cells with blocking diodes
Maximum power point tracking with temperature compensation (MPPT-TC)
Energy storage EnerSys CYCLON pure-lead VRLA AGM battery -65 ... +80°C manufacturers operating range
On-board battery status; optional port for battery charging
Designed for 5 year battery life, replaceable and recyclable
Energy Management System (EMS) Intelligent, microprocessor
On-board diagnostics and data logger
Automatic Light Control (ALC) Adjusts output intensity in response to unusually low amounts of sunlight to ensure continued operation
Programming Programmable with optional infrared programmer or via integrated 4-character LED display
GPS synchronisation Optional GPS enables two or more lights to flash in unison
Construction Premium grade UV-resistant, polycarbonate lens/head
Polycarbonat/polysiloxane co-polymer base
Environmentally friendly, durable powder coated aluminium chassis
Thermoplastic gaskets
Waterproof, vented battery compartment
Operating temperature
-30 ... +50°C (optimal); -40 ... +80°C (maximum)
Mounting
3 or 4, 7.87” (200 mm) bolt circle mounting pattern
Wind load
70 m/s
Ice load
22 kg/m²
Weight
10.2 kg
Manufacturer
Carmanah Technologies

Instructions

Programming & Configuration Options:
