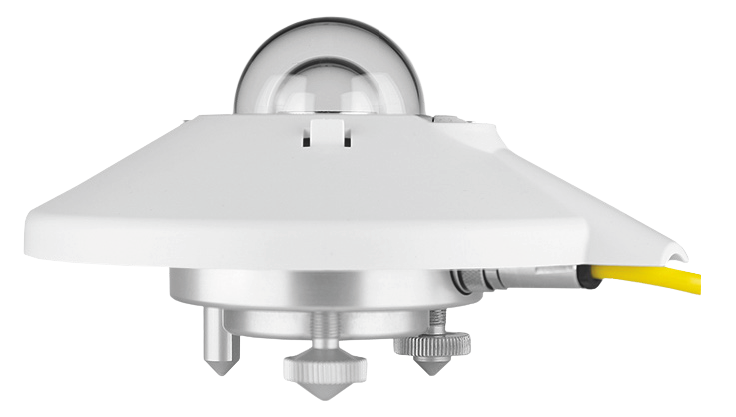

Pyranometer Kipp & Zonen SMP 10x

  • Order number
    S61435
  • Availability

    Usually on stock
Spectrally flat Class A pyranometer with advanced sensor technology, digital connectivity and a low‑maintenance design.

Description

The Pyranometer Kipp & Zonen SMP10x is a robust, low-maintenance Class A pyranometer for precise solar radiation measurement. It combines advanced sensor technology with reliable performance and easy integration.

Highlights:

  • Spectrally Flat Class A pyranometer
  • Modbus® interface and amplified analogue output
  • Temperature-corrected measurement data
  • Wide power supply range: 5 to 30 VDC
  • Internal drying cartridge with at least 10 years lifetime
  • Protected against overvoltage, reverse polarity and short circuiting
  • 5-year warranty

Specifications

Pyranometer Kipp & Zonen SMP 10x
General Information
Order Number S61435
Specifications
Classification Spectrally Flat Class A, ISO 9060 & WMO
Sensitivity 7 … 14 µV/W/m² (see calibration protocol)
Spectral Range (50% points) 285 … 2800 nm
Max. Irradiance 4000 W/m²
Response Time (95%) < 2 s
Typical Signal Output for Atmospheric Applications 0 … 15 mV
Zero Offset (a) thermal radiation (200 W/m²) <±7 W/m²
Zero Offset (b) temperature change (5 K/h) <±2 W/m²
Non-linearity (100 … 1000 W/m²) <±0.2 %
Temperature Dependence of Sensitivity <1 % (-10 … +40 °C)
Level Accuracy < 0.1°
Operating Temperature -40 … +80 °C
Cable Length 10, 25, 50, or 100 m
Weight without Cable approx. 0.6 kg
Manufacturer
OTT HydroMet GmbH
