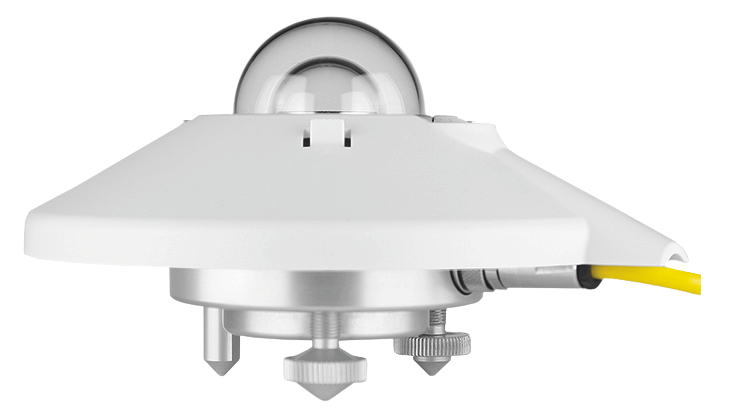

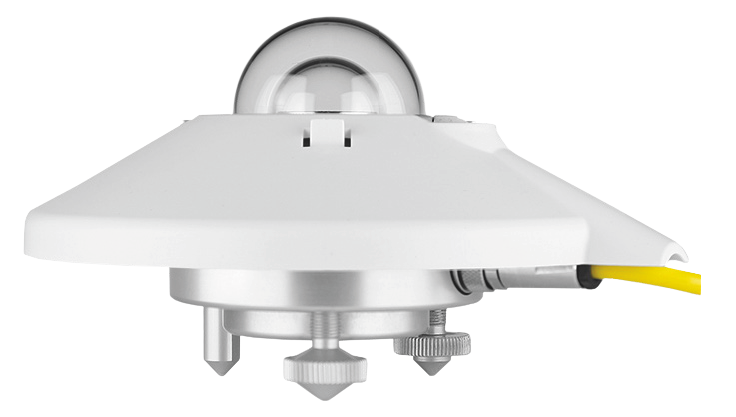

The Pyranometer Kipp & Zonen SMP6 is a robust and low-maintenance pyranometer with both digital and analogue outputs. It is designed for reliable solar radiation measurement in demanding environments.
Highlights:
| Pyranometer Kipp & Zonen SMP 6 | |
|---|---|
| General Information | |
| Order Number | S61414 |
| Specifications | |
| Classification | Class B, ISO 9060 & WMO |
| Spectral Range (50% points) | 285 … 2800 nm |
| Max. Irradiance | 2000 W/m² |
| Response Time (95%) | < 12 s |
| Typical Signal Output for Atmospheric Applications | 0 … 20 mV |
| Zero Offset (a) Thermal Radiation (200 W/m²) | < ±8 W/m² |
| Zero Offset (b) Temperature Change (5 K/h) | < ±2 W/m² |
| Non-linearity (0 … 1000 W/m²) | <±1% |
| Temperature Dependence of Sensitivity | < 4 % (-10 … +40 °C) |
| Level Accuracy | ±0.1° |
| Operating Temperature | -40 … +70 °C |
| Cable Length | 10, 25, or 50 m |
| Weight Without Cable | approx. 0.6 kg |
| Manufacturer | |
| Kipp & Zonen BV | |
| Delivery includes calibration certificate. | |
| Sensor connection diagram to Ammonit Meteo-4x data logger |
