Power Supply

Calculate the required size of the solar panel in this schedule:

Download Calculation (Meteo-40)
Download Calculation (Meteo-32)

Ammonit measuring systems are fully self-contained. A connection to the local power network is not required. The entire measuring system can be reliably powered with a 10 W solar panel. In some cases, larger panel sizes may be required, such as with the application of a large number of sensors when a satellite communication system is applied, or in cold climates requiring sensor heating.

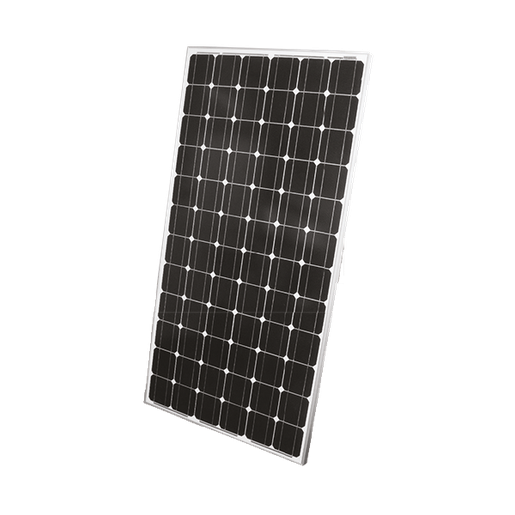

Solar module 30 W
solarmodul_20w

Order-No:
M51030

  • Capacity 30 W
  • Max. voltage output: 17.72 V (Vmp)
  • Max. current output: 1.69 A (Imp)
  • Size: 427 x 633 x ca 35 mm
  • Weight: approx. 4 kg

Downloads

Datasheet

Solar module 50 W

solarmodul 50w schatten

Order-No:
M51051

  • Capacity: 50 W (12 V)
  • Max. voltage output: 17.6 V (Vmp)
  • Max. current output: 2.84 A (Imp)
  • Size: 650 x 505 x 35 mm
  • Weight: approx. 4.8 kg








Downloads

Datasheet

Solar modules > 100 W




Solar modules larger than 100 W are available on request.

Downloads

Solar charge controller Steca solsum F
solarcharger steca solsum

Order-No:
M52110 (Steaca Solsum 6.6F)

  • System voltage: 12 V (24 V)
  • Max. current output: 6 A
  • Max. voltage output: 6 A
  • Temperature range: -25 ... 50 °C
  • Size: 145 x 100 x 30 mm
  • Weight: approx. 150 g
  • Protection: IP 32


Downloads

Datasheet

AQPower - Stand-Alone Power Supply System
aqpower 220x165

Order-No:
M58200 (AQPower)
M58280 (Terminal box for met mast)
M58290 (Customized trailer)

Stand-alone power supply system consisting of diesel generator and solar modules. Integrated diesel heater. Remote control and monitoring.

  • Output voltage: 24 VDC (optional 12 VDC)
  • Max. output power: 600 W
  • Battery: 2x 200 Ah
  • Operating temperature: -40 ... 60 °C
  • Diesel generator power: 3.5 kW
  • Dimension [LxWxH]: 2.2 x 1.4 x 1.5 m
  • Weight: approx. 700 kg (empty fuel tank)

Downloads

Datasheet

Fuel Cell Power Supply Box for LiDAR devices
fuelcellbox 220x260

Order-No:
M58550

Stand-alone power supply system with fuel cell and solar modules. Remote control and monitoring. Folded solar modules for easy and fast start-up.

  • Output voltage: 24 VDC
  • Max. output power: 350 W
  • 2 solar modules à 260 W
  • EFFOY fuel cell techology
  • Battery: 440 Ah
  • Removable battery bank (260 kg) for transport
  • Dimensions [LxWxH]: 1.40 x 0.90 x 1.00 m
  • Weight: approx. 650 kg

Downloads

Datasheet

Fuel Cell Power Supply Trailer System for LiDAR devices
meventus fuelcell 220x203

Order-No:
M58600

Stand-alone power supply system with fuel cell and solar modules. Remote control and monitoring. Space for a LiDAR device inside the trailer.

  • Output voltage: 24 VDC
  • Max. output power: 200 W
  • Battery: 440 Ah
  • Operating temperature: -40 ... 60 °C
  • Dimensions [LxWxH]: 3.78 x 1.81 x 2.11 m
  • Weight: approx. 850 kg

Downloads

Datasheet

Connection with main Supply

Our sales team will advise you concerning cables and main supply.

Each measuring system has its own requirements. In order to achieve the most accurate measurement results the selection of the right equipment is essential.
