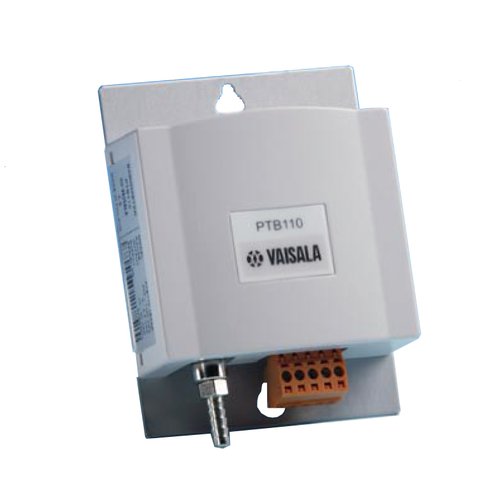

The PTB110 barometric pressure sensor uses the Vaisala BAROCAP® sensor, a silicon capacitive absolute pressure sensor developed by Vaisala for barometric pressure measurement applications. The sensor combines the outstanding elasticity characteristics and mechanical stability of single-crystal silicon with the proven capacitive detection principle.
The excellent long-term stability of the barometric pressure sensor minimizes or even removes the need for field adjustment in many applications.
The PTB110 is suitable for a variety of applications, such as environmental pressure monitoring, data buoys, laser interferometers, and in agriculture and hydrology. The compact PTB110 is especially ideal for data logger applications as it has low power consumption.
500 ... 1100 hPa (mbar)
|Temperature range||-40 ... +60 °C|
|Output voltage||0 ... 5 VDC|
|Supply voltage||10 ... 30 VDC|
|Current consumption||< 4 mA|
|Total accuracy||±0.3 hPa (+15 ... +25 °C)
±0.6 hPa ( 0 ... +40 °C)
±1.0 hPa (-20 ... +45 °C)
±1.5 hPa (-40 ... +60 °C)
|Long term stability||±0.1 hPa/year|
|Dimensions||97.3 x 68.4 x 28.1 mm (H x W x D)|
|Connection||Screw terminal plug (5-pole plug)|
|Housing cover||ABS / PC lend|
|Housing classification||IP 32|
|Sensor||Plug Pin No.||Ammonit Cable Wire Colour||Meteo-40
|Supply||4||red||10 ... 30 VDC|
Connect the shield logger-sided to Ground (GND)
Cable type: LiYCY 4 x 0.25 mm²
