Description
| Order-No | ||
| S32100 | PTB 110.3A | 800 … 1100 hPa |
| S32200 | PTB 110.2A | 600 … 1100 hPa |
| S32300 | PTB 110.1A | 500 … 1100 hPa |
- Accuracy ±0.3 hPa @ +20 °C
- Delivery including IEC 17025 calibration certificate
- Accurate barometric pressure measurements at a room temperature and
- General environmental pressure monitoring over a wide temperature range
Vaisala BAROCAP® technology

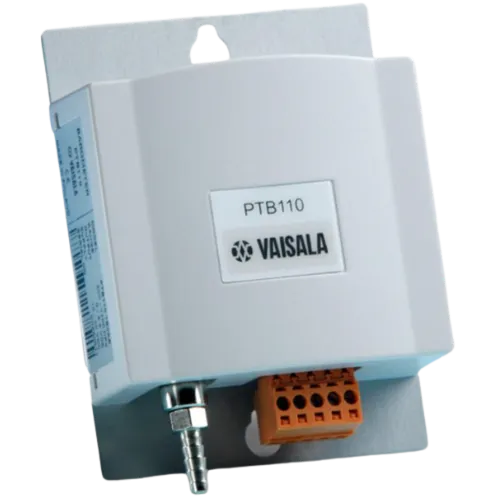

The PTB110 barometric pressure sensor uses the Vaisala BAROCAP® sensor, a silicon capacitive absolute pressure sensor developed by Vaisala for barometric pressure measurement applications. The sensor combines the outstanding elasticity characteristics and mechanical stability of single-crystal silicon with the proven capacitive detection principle.
Accuracy and stability
The excellent long-term stability of the barometric pressure sensor minimizes or even removes the need for field adjustment in many applications.
Applications
The PTB110 is suitable for a variety of applications, such as environmental pressure monitoring, data buoys, laser interferometers, and in agriculture and hydrology. The compact PTB110 is especially ideal for data logger applications as it has low power consumption.
